Headlamp Washer Switch: Service and Repair

Headlight Washer Switch Test/Replacement

1. Remove the driver's outer dashboard trim Driver's Outer Dashboard Trim Removal/Installation.

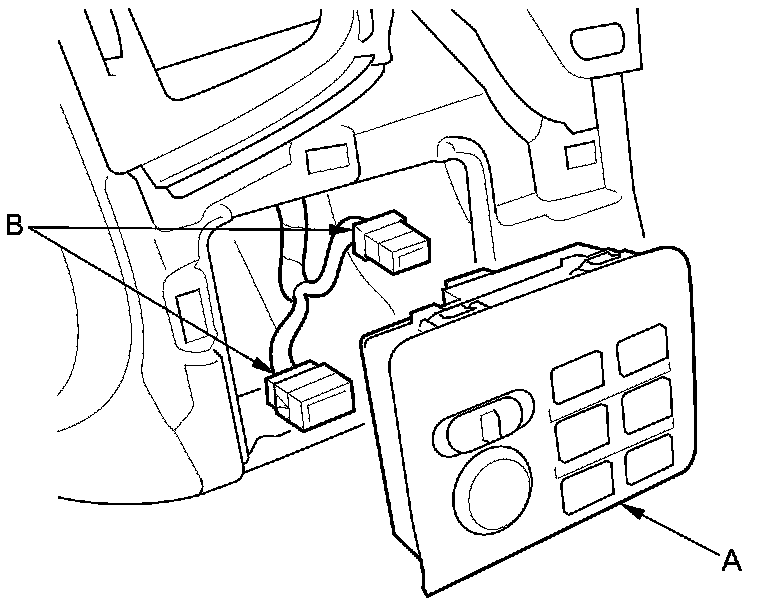

2. Remove the multi switch (A), and disconnect the connectors (B).






3. Check for continuity between the terminals in each switch position according to the table.






4. If the continuity is not as specified, remove the power mirror switch (A), and replace the multi switch (B).





5. Install the switch in the reverse order of removal.
