Home >> Acura >> 2010 >> ZDX V6-3.7L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Specifications >> Mechanical Specifications >> Transfer Output Shaft Specification(s)

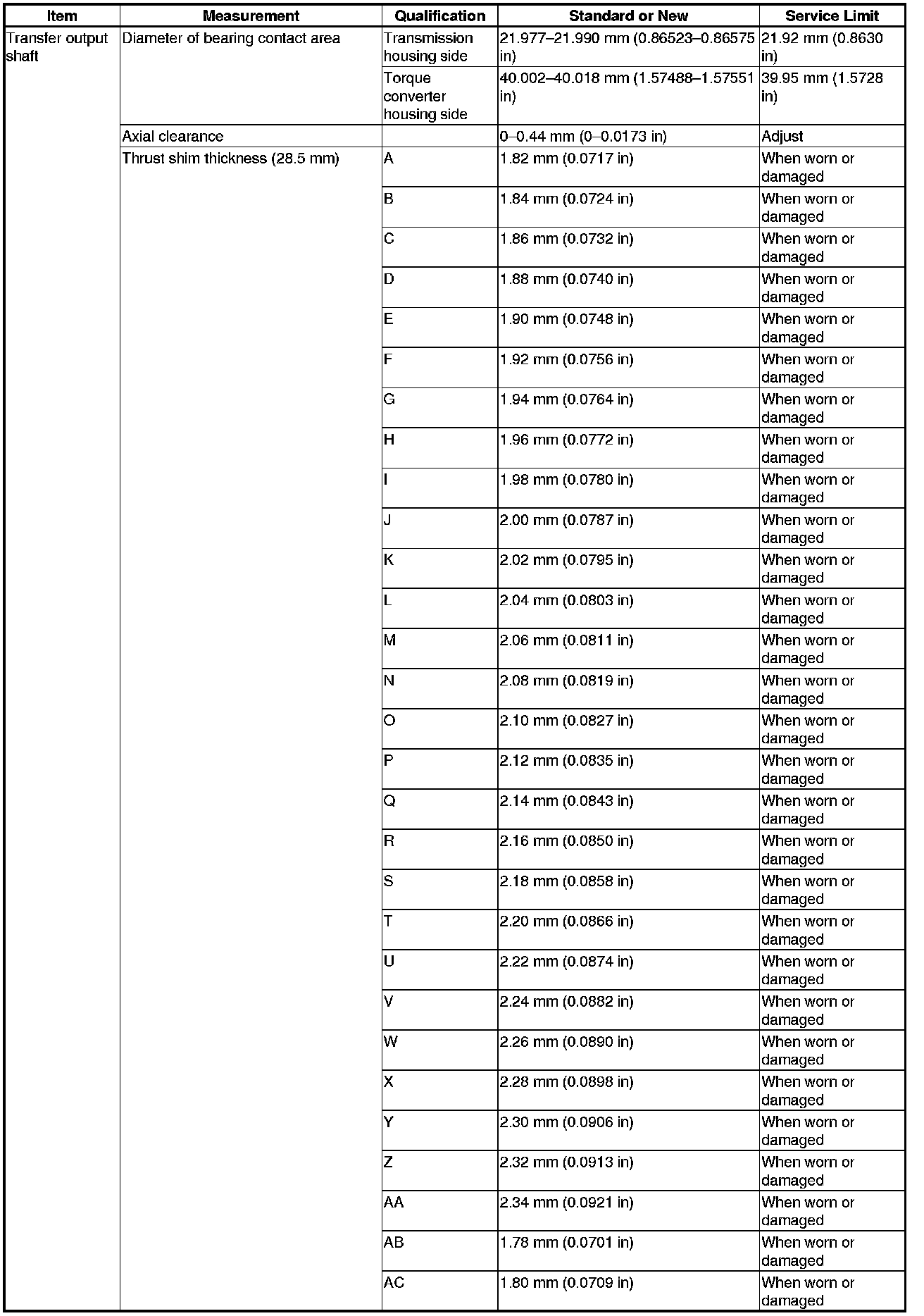

Transfer Output Shaft Specification(s)




Transfer output shaft

Transfer output shaft
