A/T Shift Lever Boot Replacement

A/T Shift Lever Boot Replacement

1. Remove the shift lever knob A/T Shift Lever Knob Replacement.

2. Remove the A/T shift panel A/T Shift Panel Replacement.

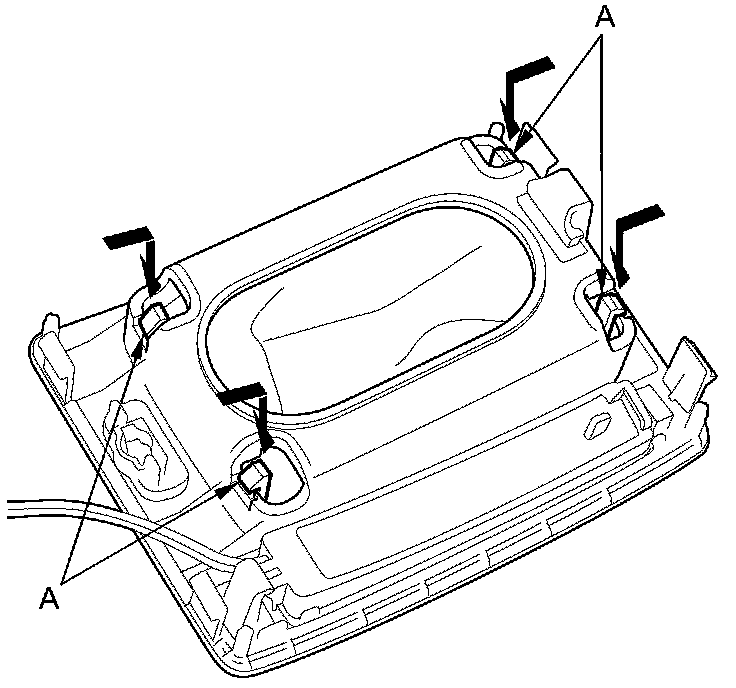

3. Release the lock tabs (A) on the shift lever boot using a screw driver.






4. Replace the shift lever boot (A).





5. Install the shift lever boot on the A/T shift panel (B).

6. Install the A/T shift panel A/T Shift Panel Replacement.

7. Install the shift lever knob A/T Shift Lever Knob Replacement.
