Telescoping Wheel Motor: Testing and Inspection

Power Tilt/Telescopic Steering Motor Test

1. Remove the steering column covers Service and Repair.

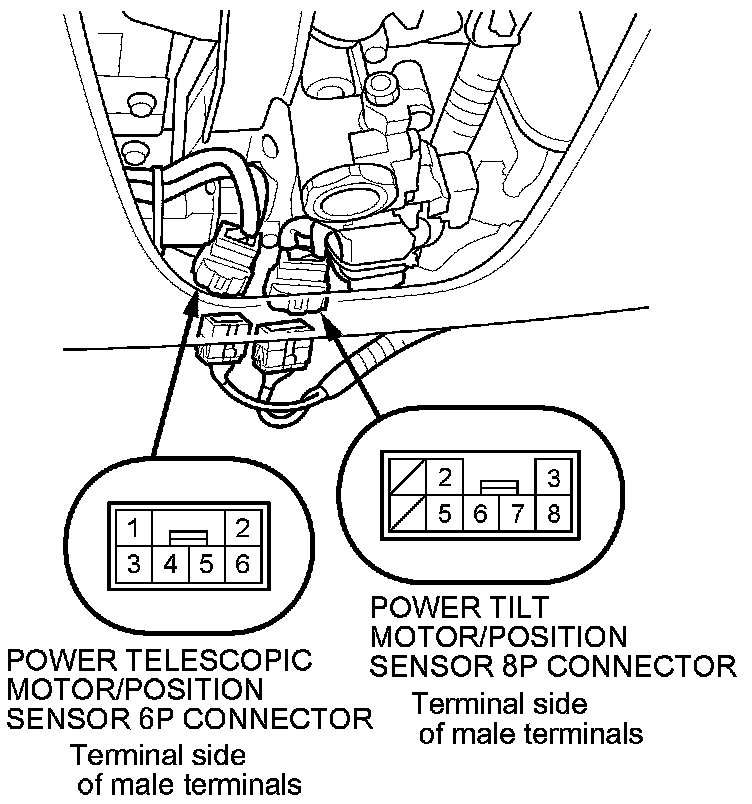

2. Disconnect the 6P connector and 8P connector from the power tilt/telescopic steering motors.






3. Check each motor by connecting power and ground according to the table. When the motor stops running, disconnect battery power immediately.









4. If the motor does not run or fails to run smoothly; replace the steering column assembly Steering Column Removal/Installation.
