Home >> Acura >> 2010 >> ZDX V6-3.7L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Fuse >> Locations >> Location By Photo >> Auxiliary Under-Hood Fuse/Relay Box - Fuse-to-Components Index

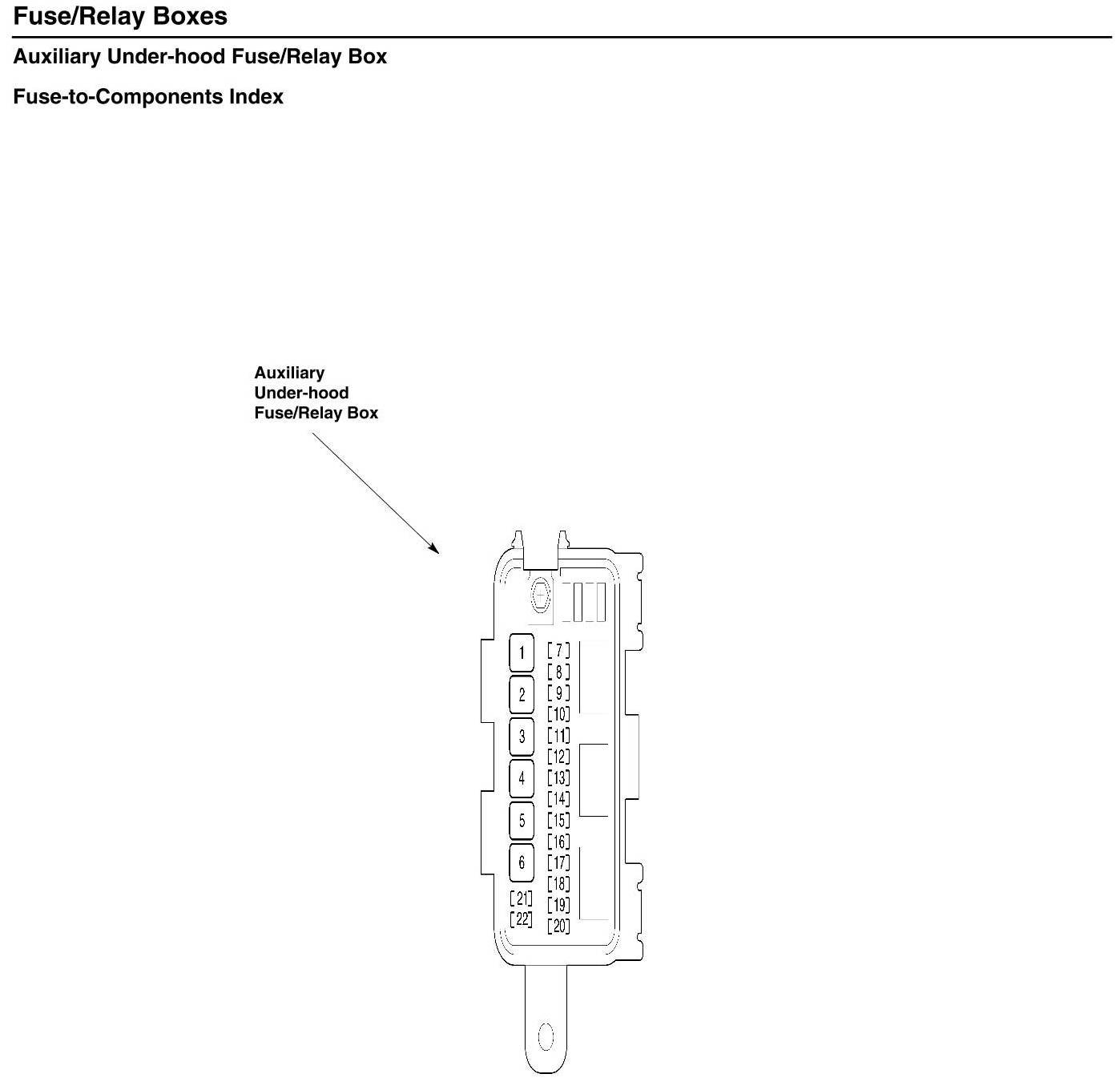

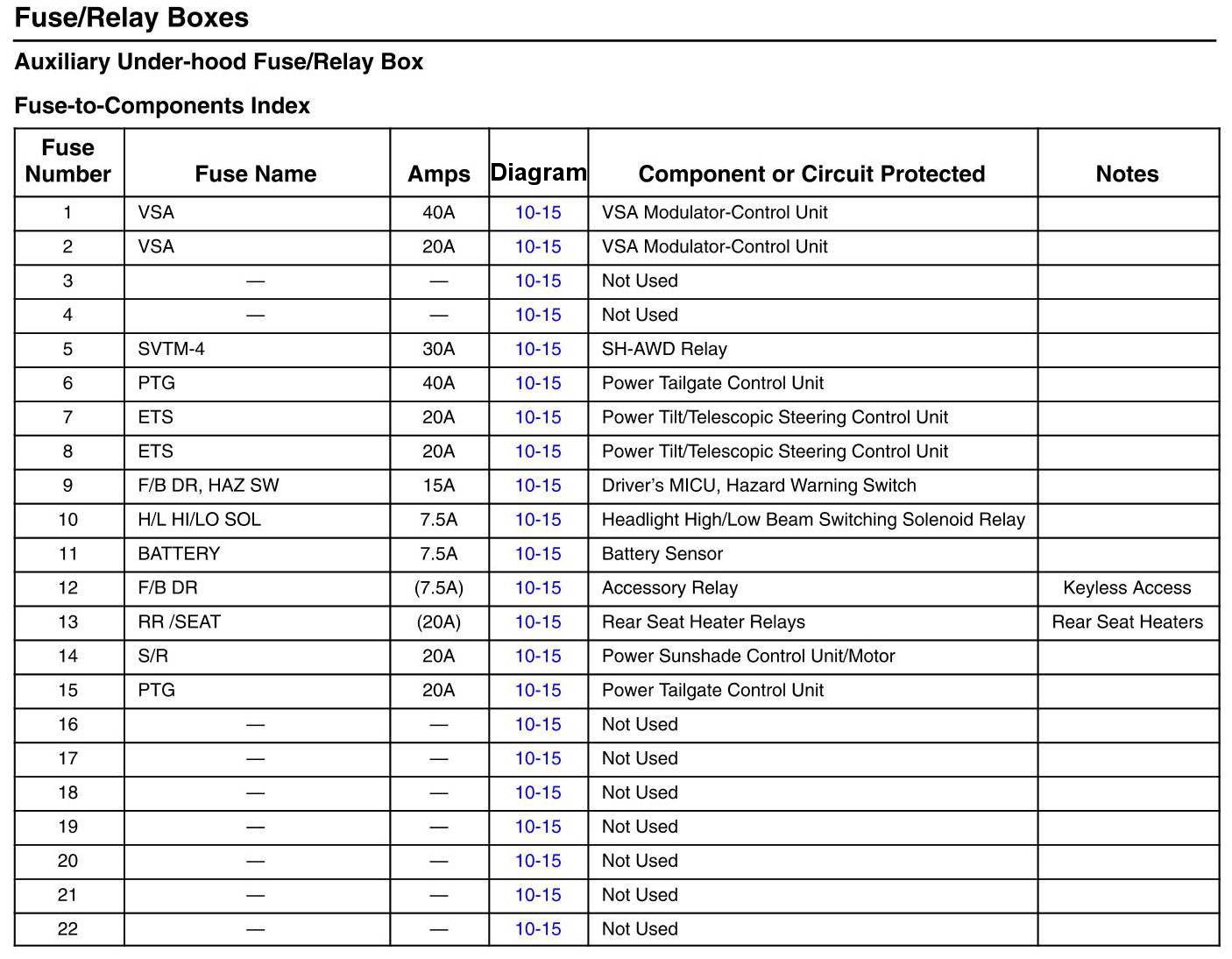

Auxiliary Under-Hood Fuse/Relay Box - Fuse-to-Components Index
