Home >> Acura >> 2010 >> ZDX V6-3.7L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Fuse >> Application and ID >> Driver's Under-Dash Fuse/Relay Box - Fuse-to-Components Index

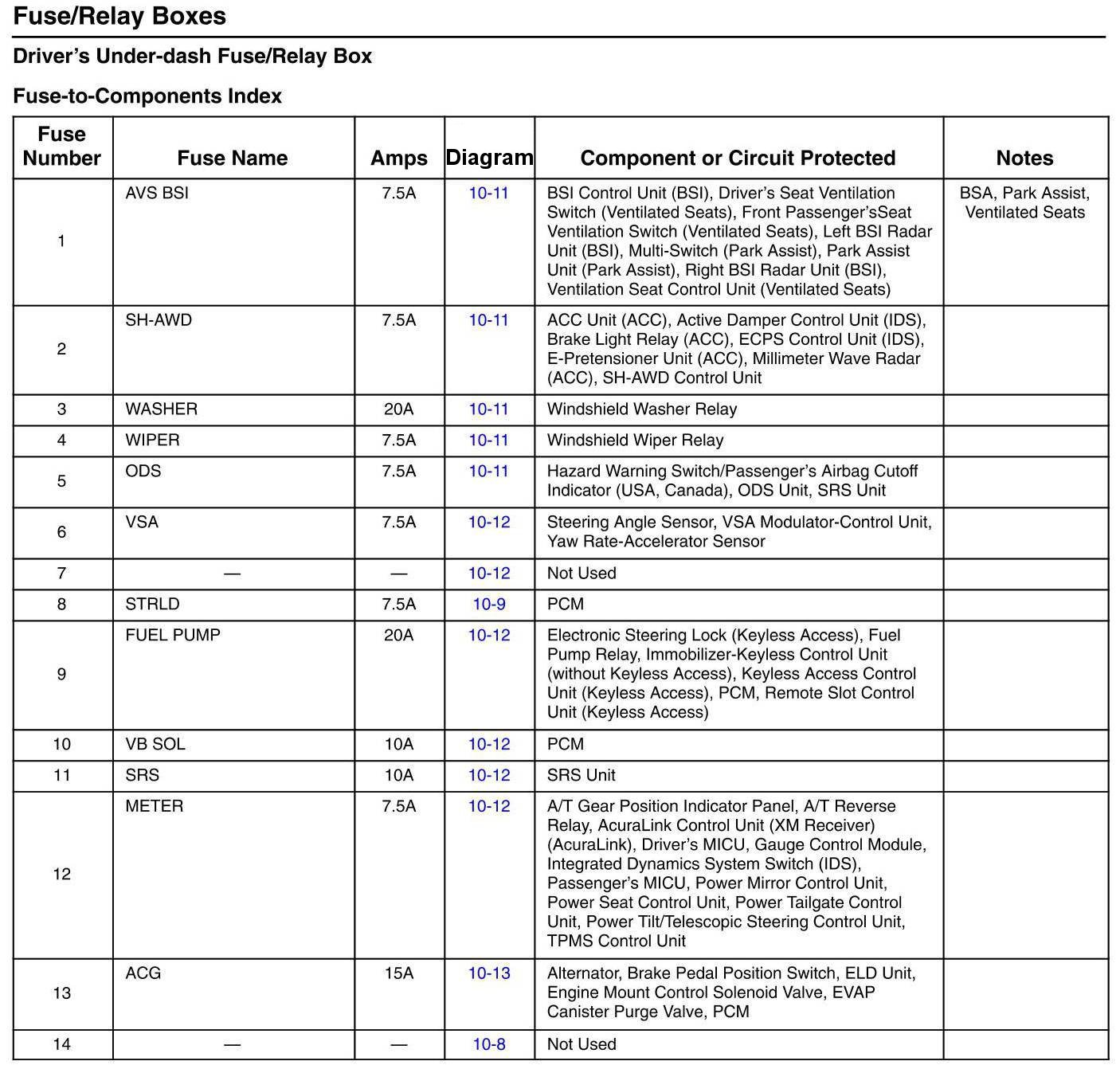

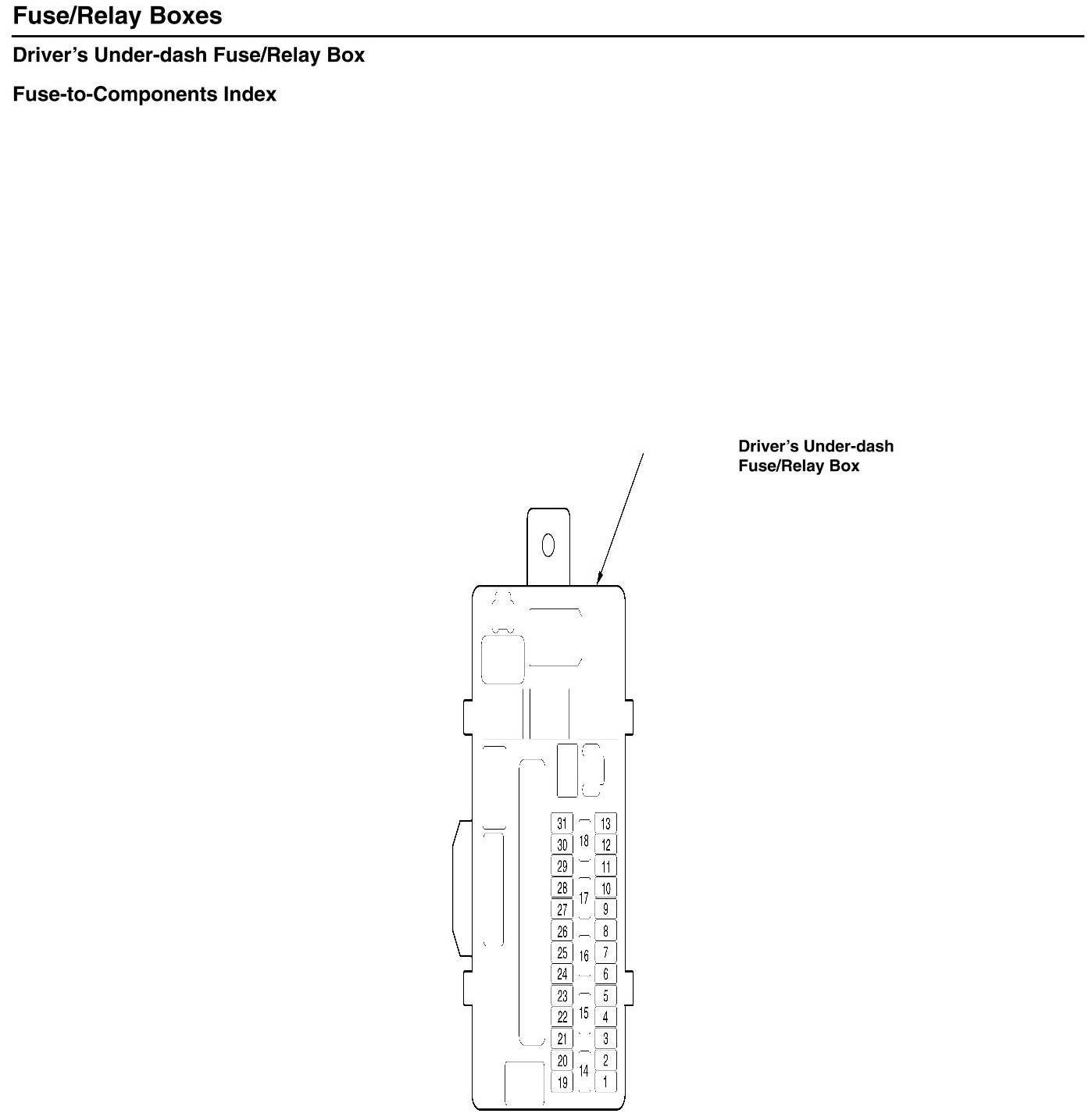

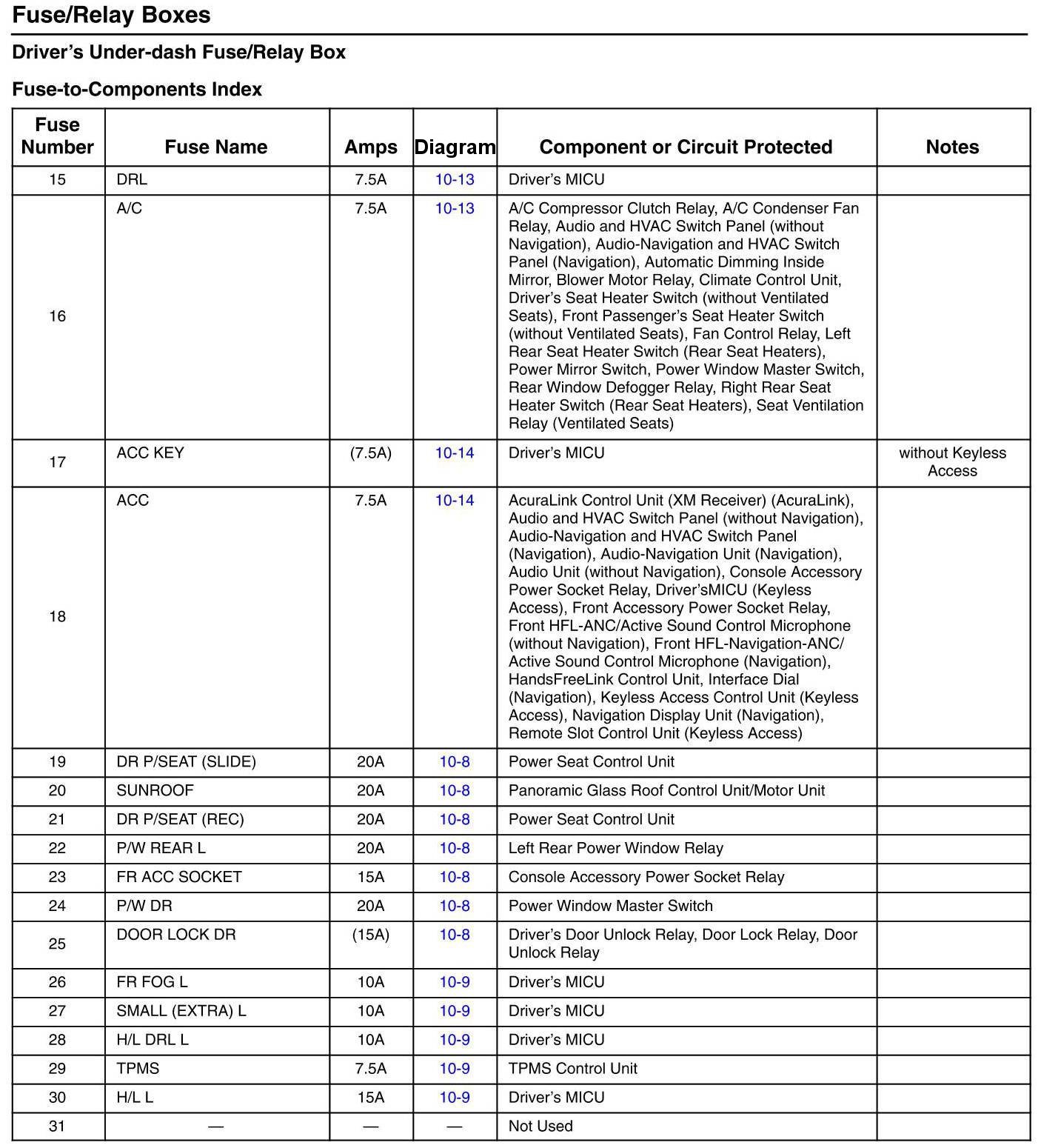

Driver's Under-Dash Fuse/Relay Box - Fuse-to-Components Index
