Home >> Acura >> 2010 >> ZDX V6-3.7L >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Seat Occupant Classification Module - Air Bag >> Diagrams

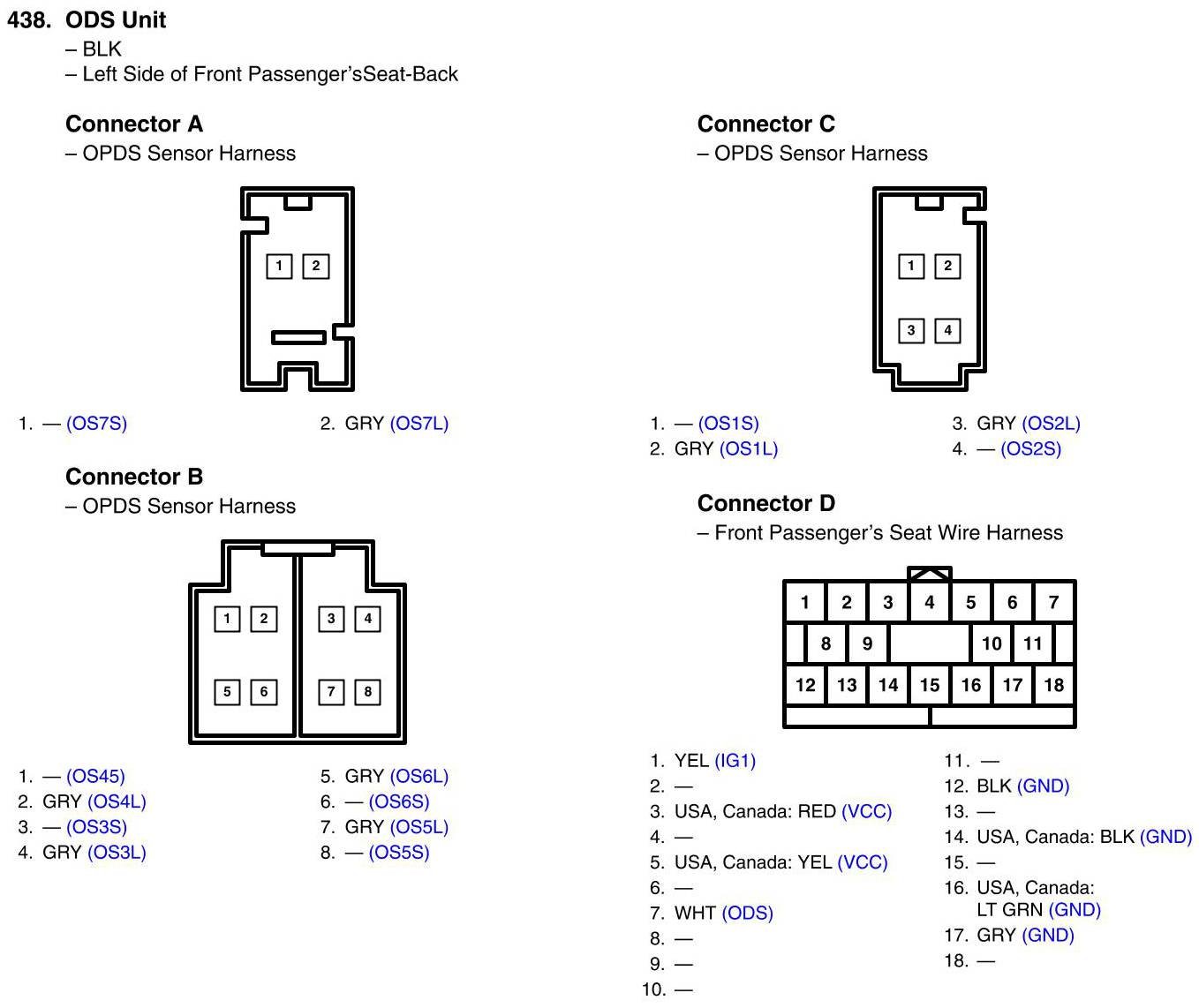

Seat Occupant Classification Module - Air Bag: Diagrams
