Home >> Acura >> 2010 >> ZDX V6-3.7L >> Repair and Diagnosis >> Powertrain Management >> Fuel Delivery and Air Induction >> Fuel Tank Unit >> Diagrams

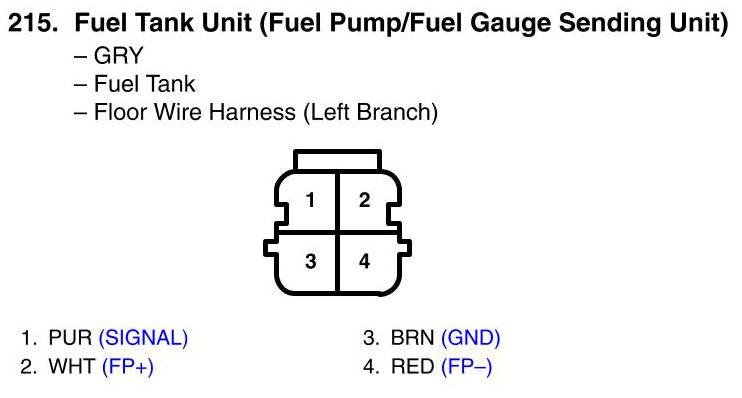

Fuel Tank Unit: Diagrams
