Positive Crankcase Ventilation Valve: Service and Repair

PCV Valve Replacement

1. Remove the engine cover Intake Manifold Removal/Installation.

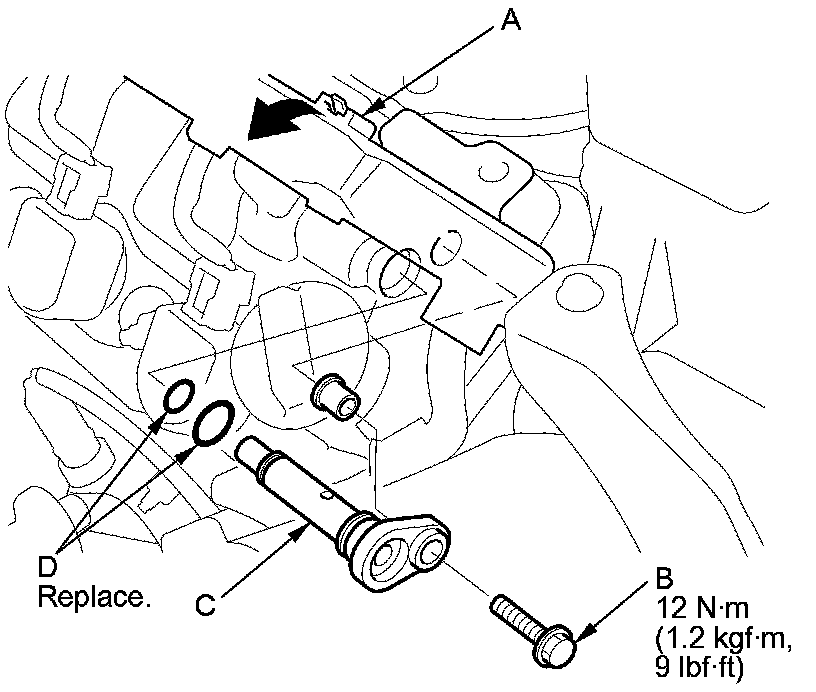

2. Lift up the engine harness holder (A).





3. Remove the bolt (B).

4. Remove the PCV valve (C).

NOTE: Take care not to spill oil on the hot exhaust manifold.

5. Install the parts in the reverse order of removal.

NOTE:

- When installing a new PCV valve, make sure the O-rings (D) are in place.
- When installing a used PCV valve, use new O-rings.
