Under-Floor TWC Removal/Installation

Under-Floor TWC Removal/Installation

1. Raise the vehicle on a lift.

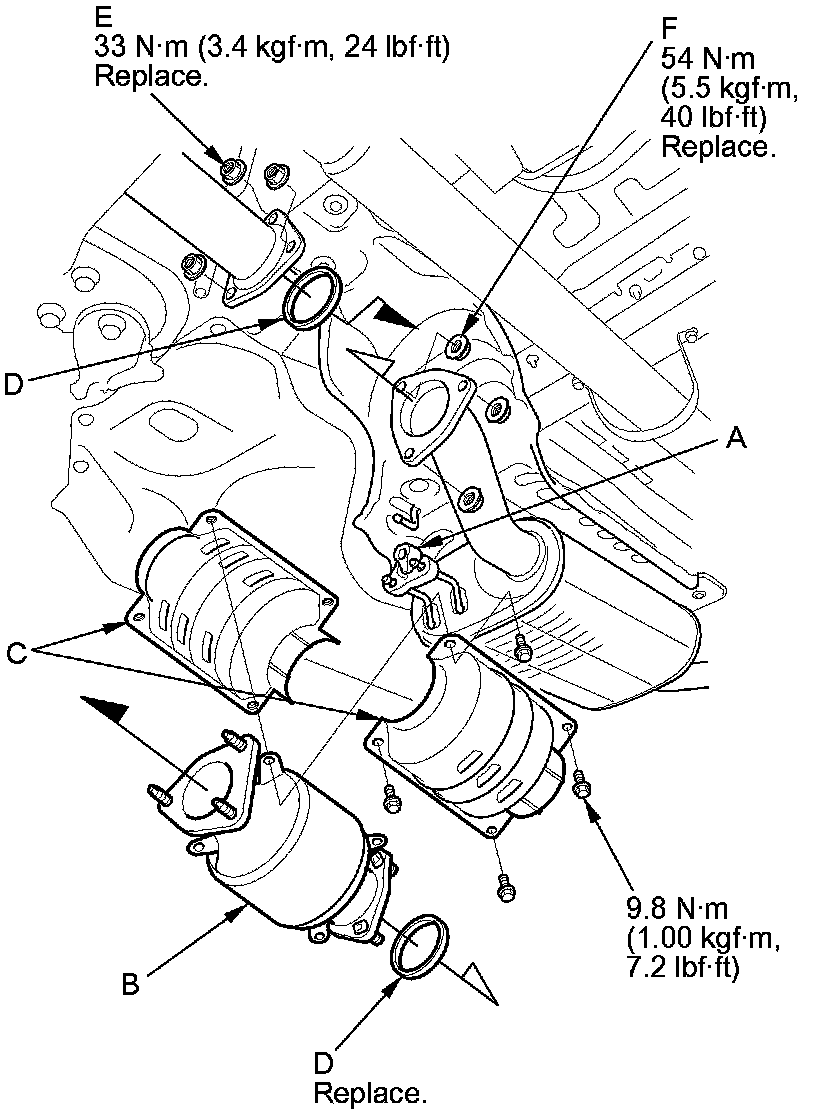

2. Remove the exhaust pipe hanger (A).





3. Remove the under-floor TWC (B).

4. Remove the converter covers (C).

5. Install the parts in the reverse order of removal with new gaskets (D) and new self-locking nuts (E and F).
