Home >> Acura >> 2010 >> ZDX V6-3.7L >> Repair and Diagnosis >> Locations >> Harness Locations >> Tailgate Wire Harness and Subharness

Tailgate Wire Harness and Subharness

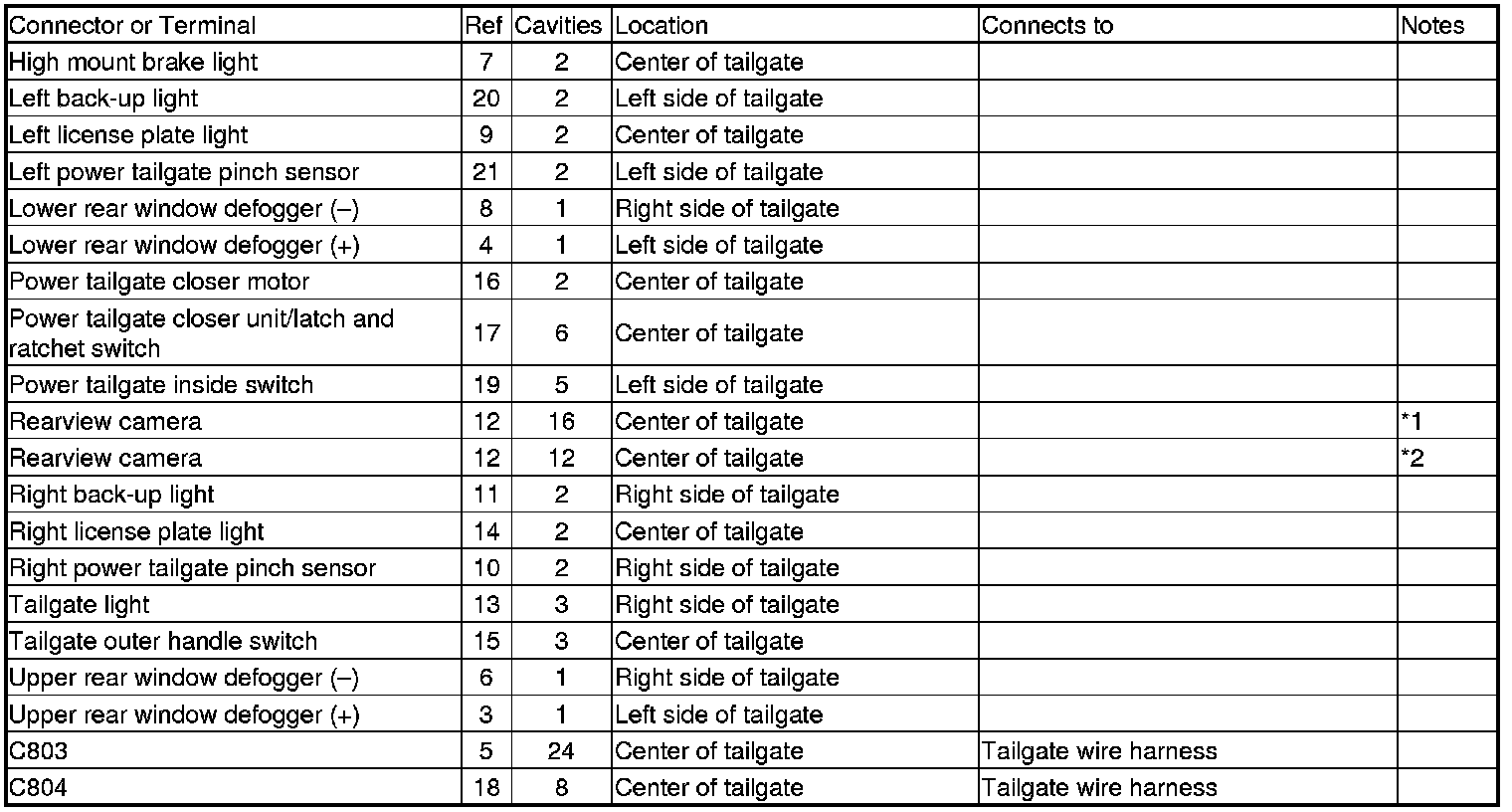

Connector and Harness Locations

Tailgate Wire Harness






Tailgate Subharness

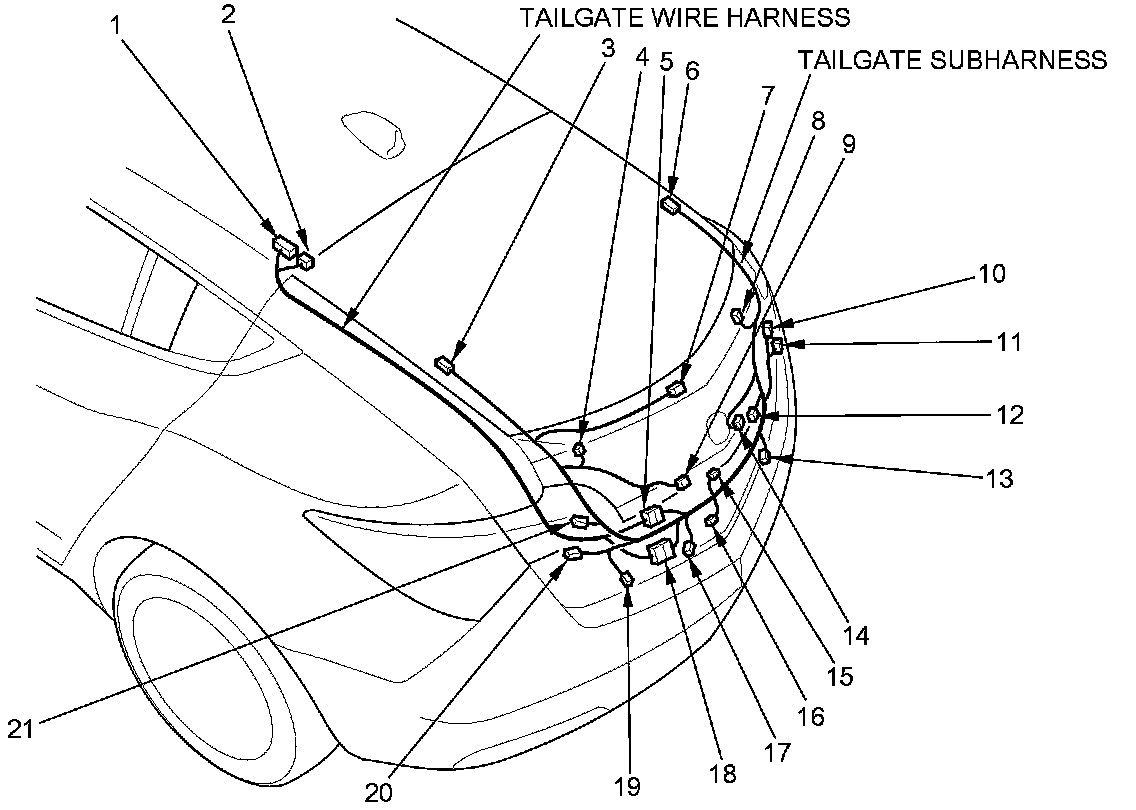

Harness View
