Left Engine Compartment Wire Harness

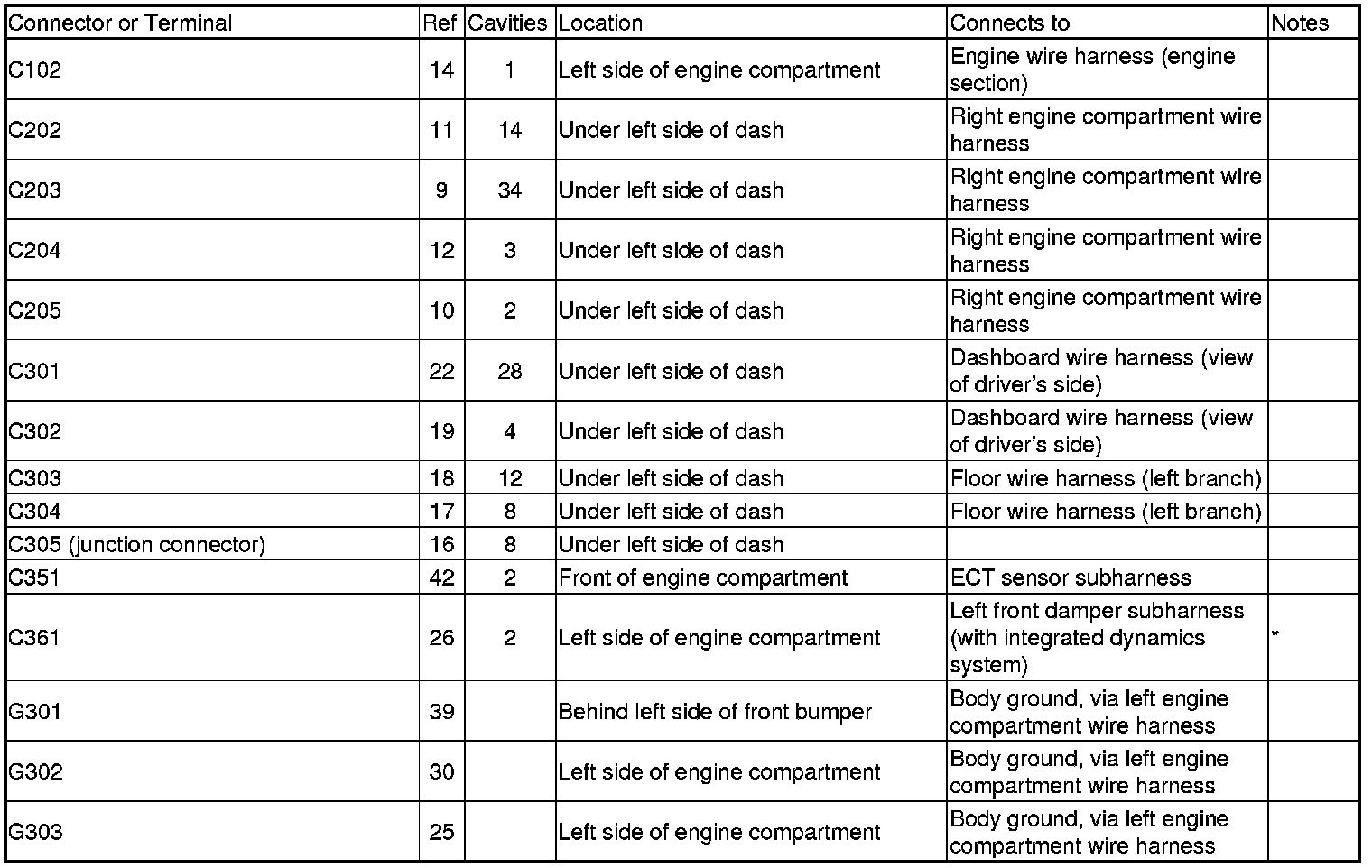

Connector and Harness Locations

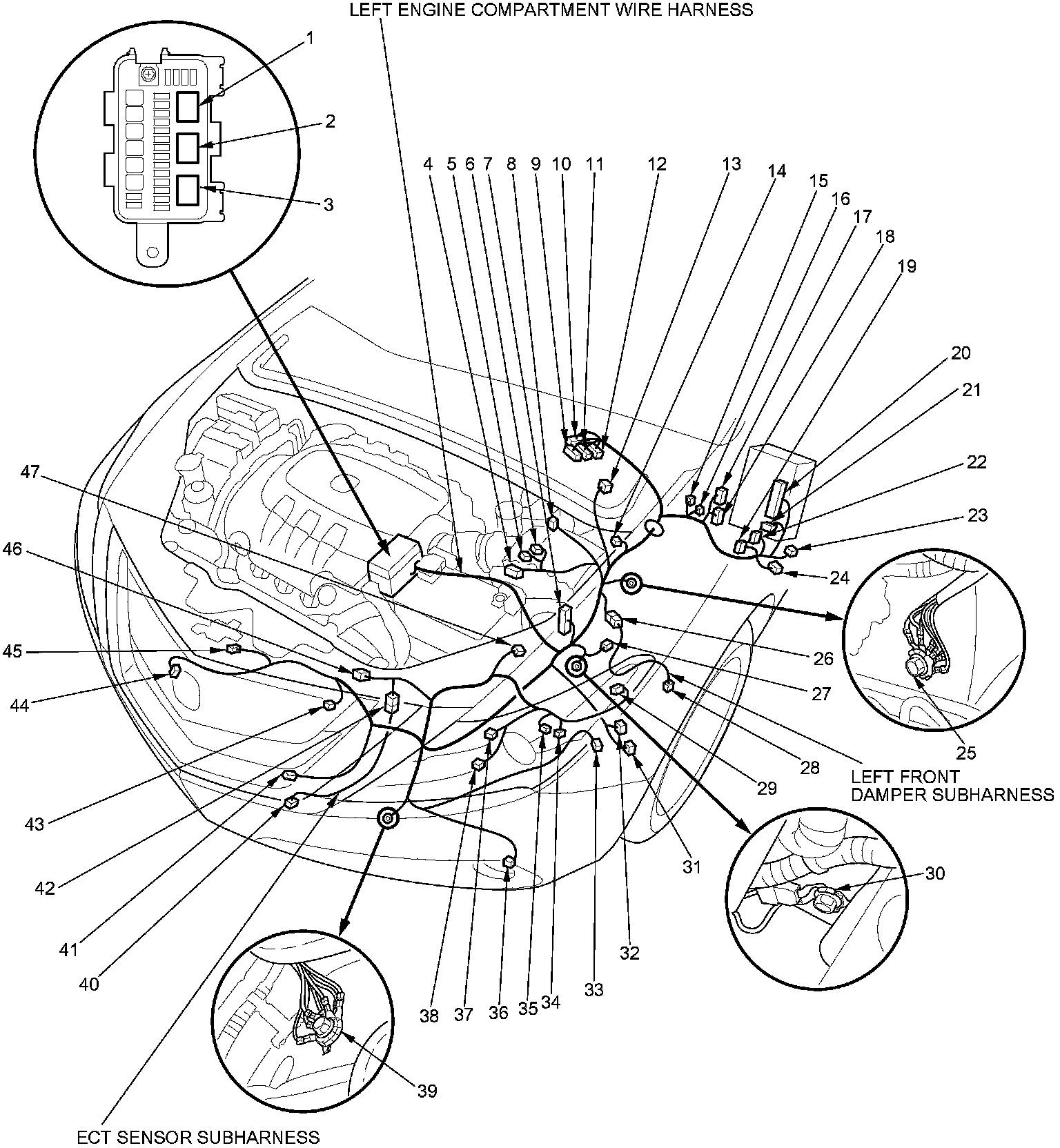

Left Engine Compartment Wire Harness

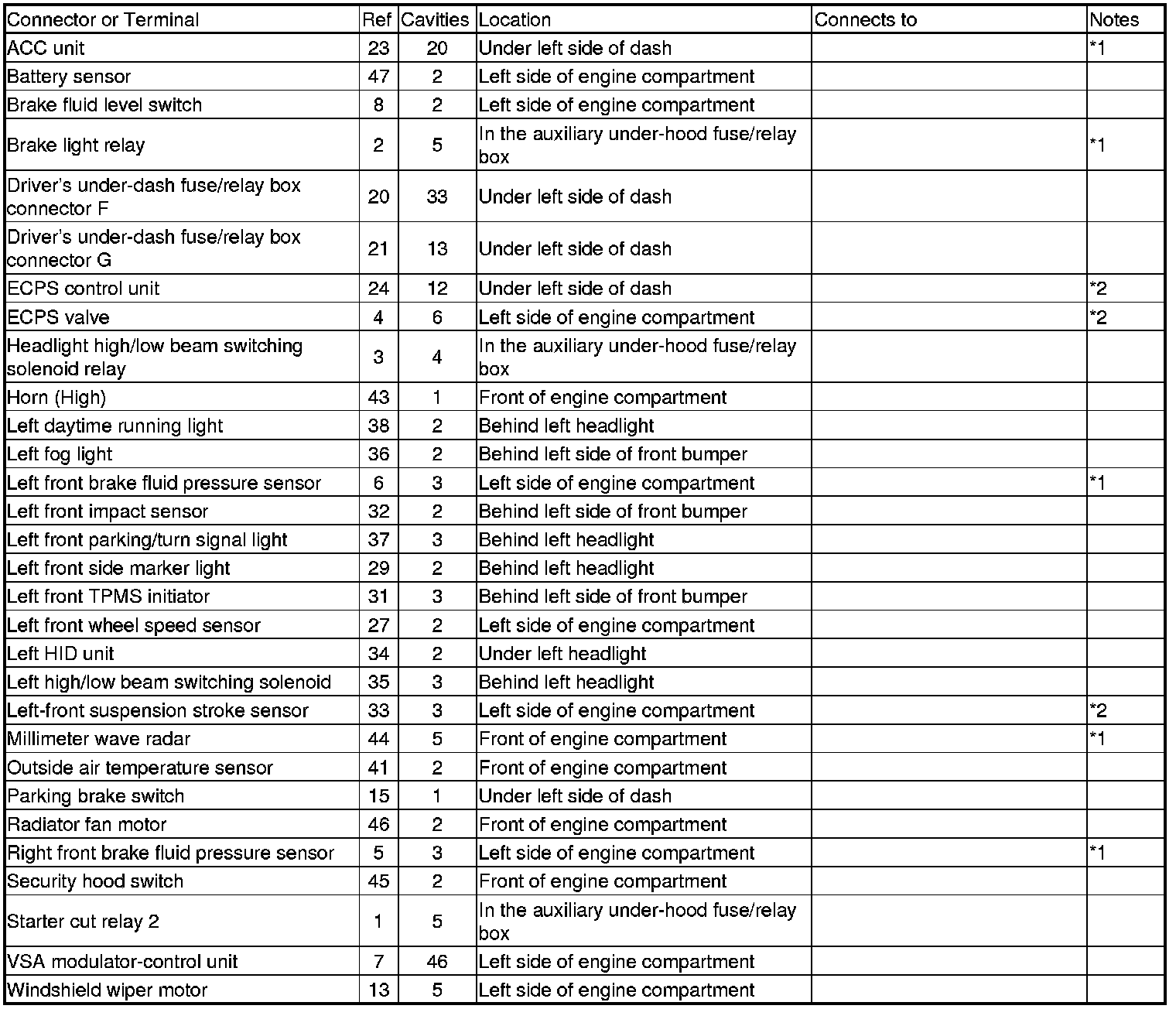

Left Engine Compartment Wire Harness (cont'd)










Harness View
