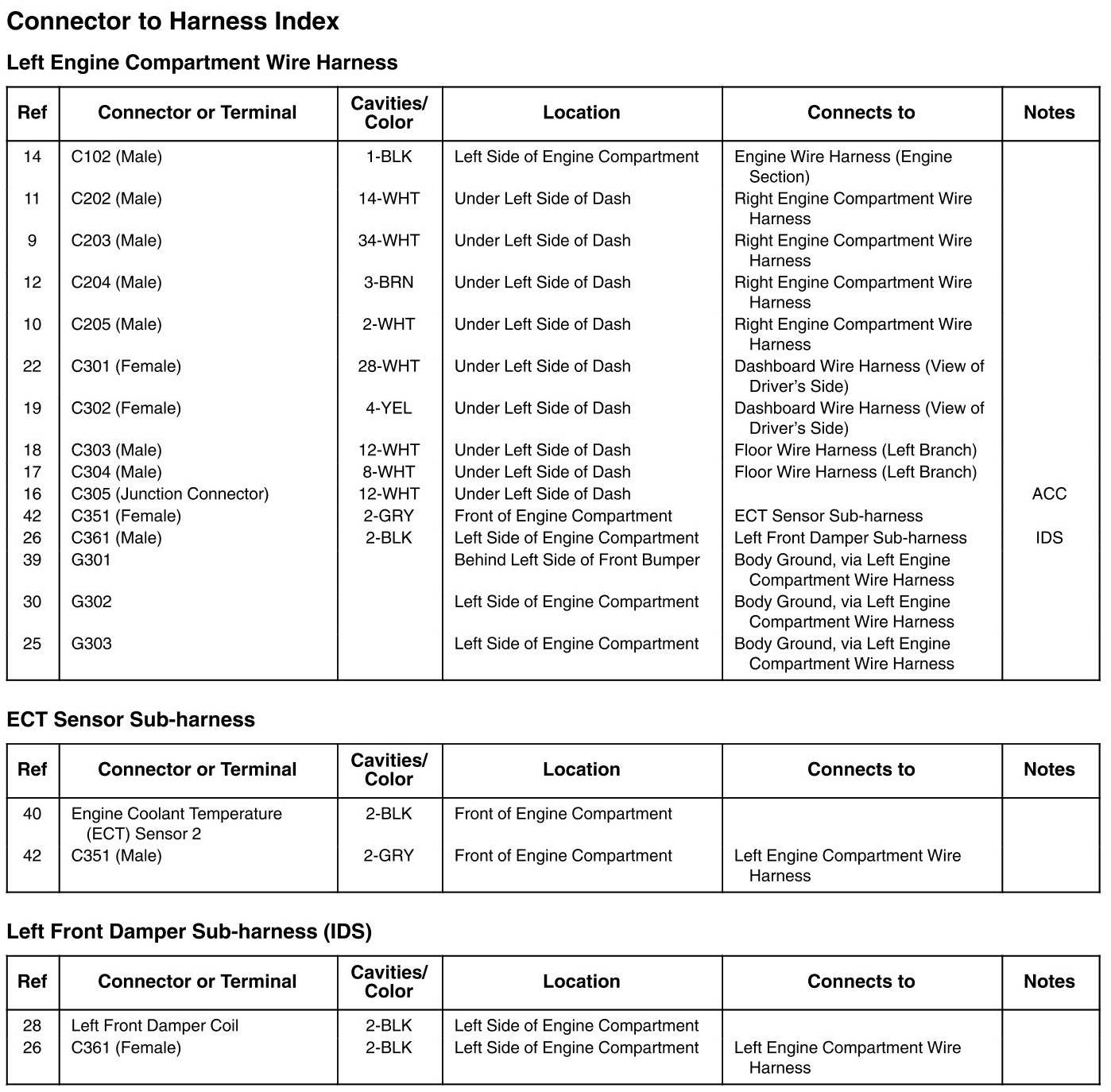

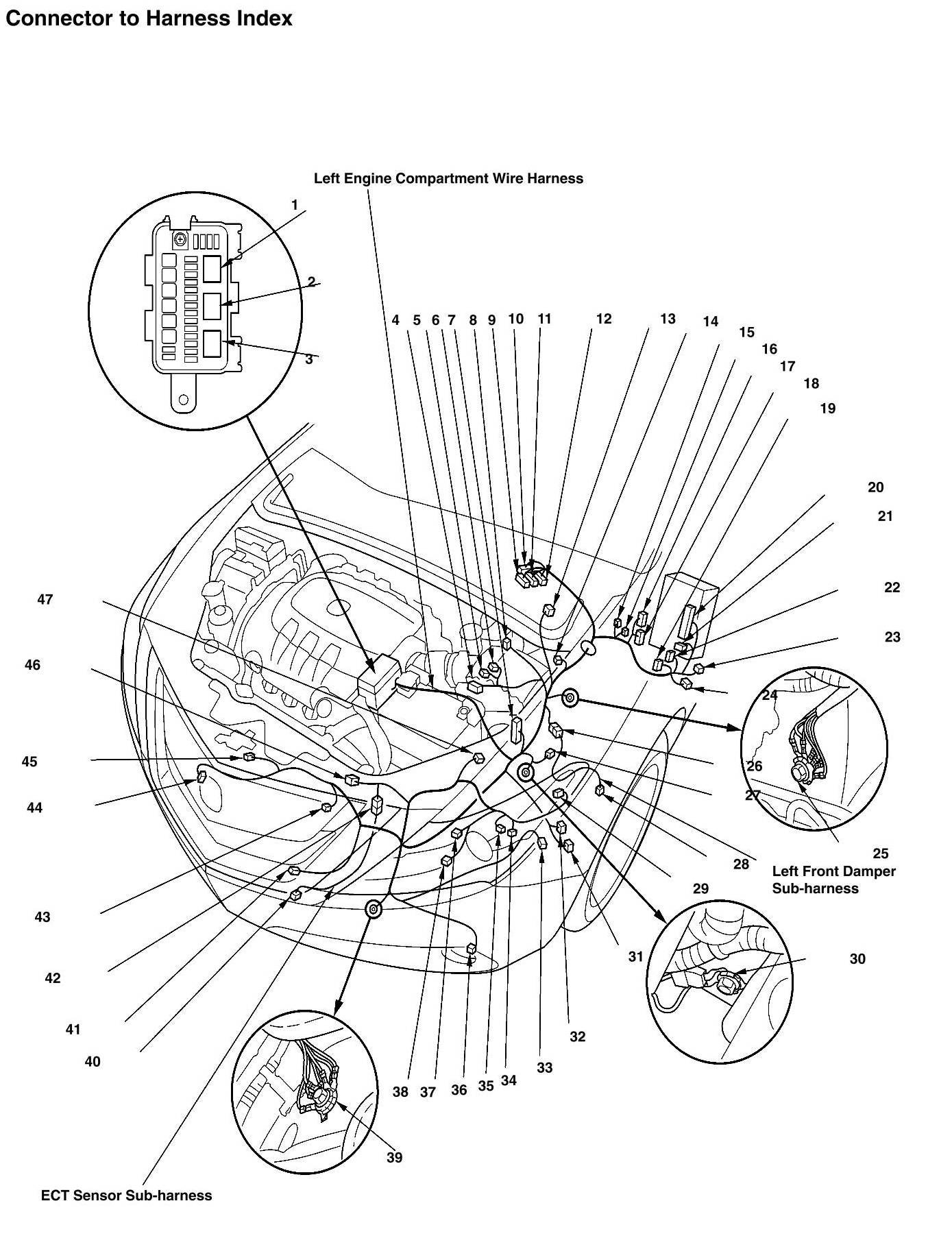

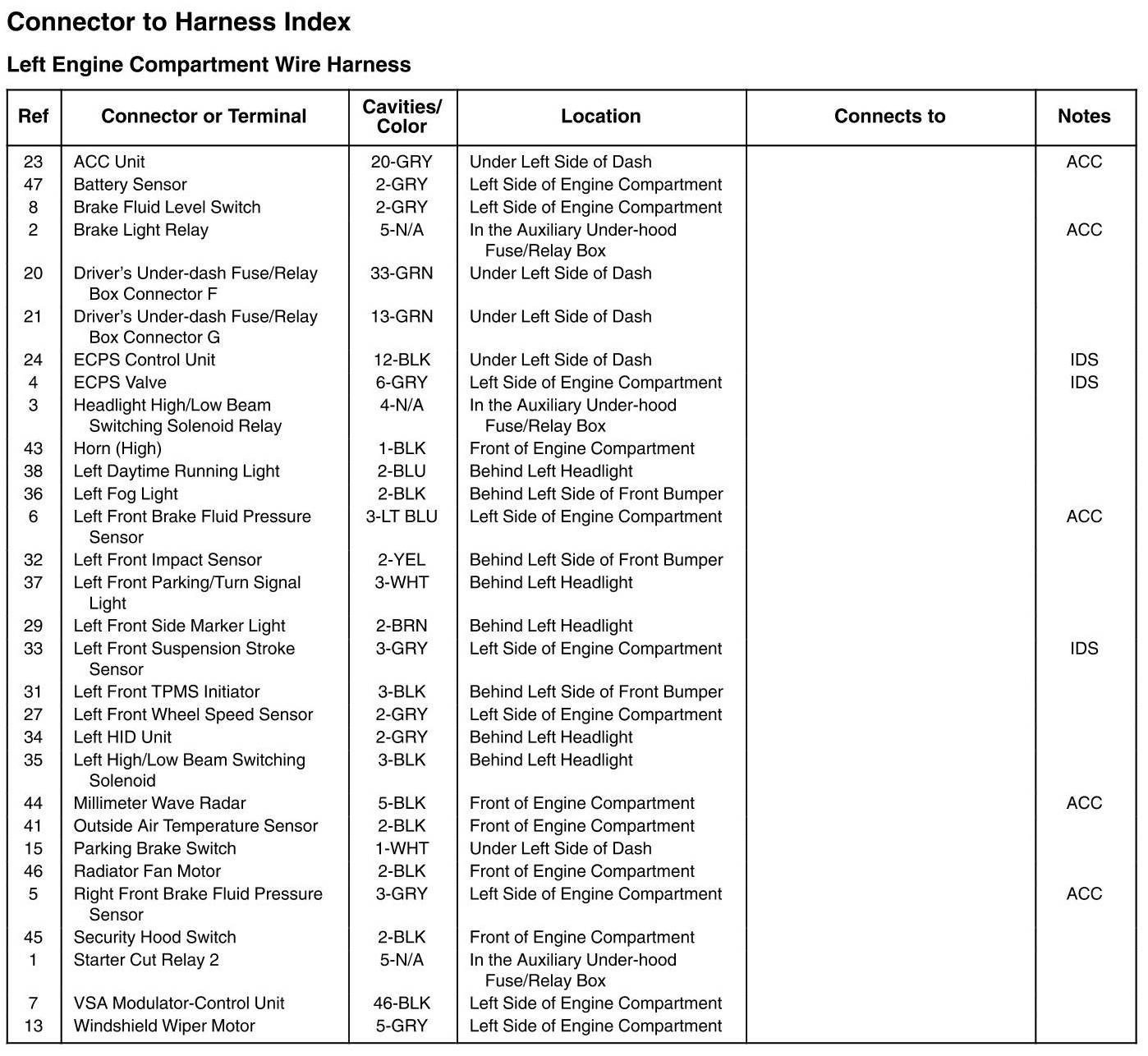

Left Engine Compartment Wire Harness, ECT Sub-Harness, and Left Front Damper Sub-Harness IDS Connector and Harness Locations

Left Engine Compartment Wire Harness, ECT Sensor Sub-harness, And Left Front Damper Sub-harness IDS Connector And Harness Locations
