Home
>>
Acura
>>
2010
>>
ZDX V6-3.7L
>>
Repair and Diagnosis
>>
Locations
>>
Harness Locations
>>
Engine Wire Harness (Engine Section)
Engine Wire Harness (Engine Section)

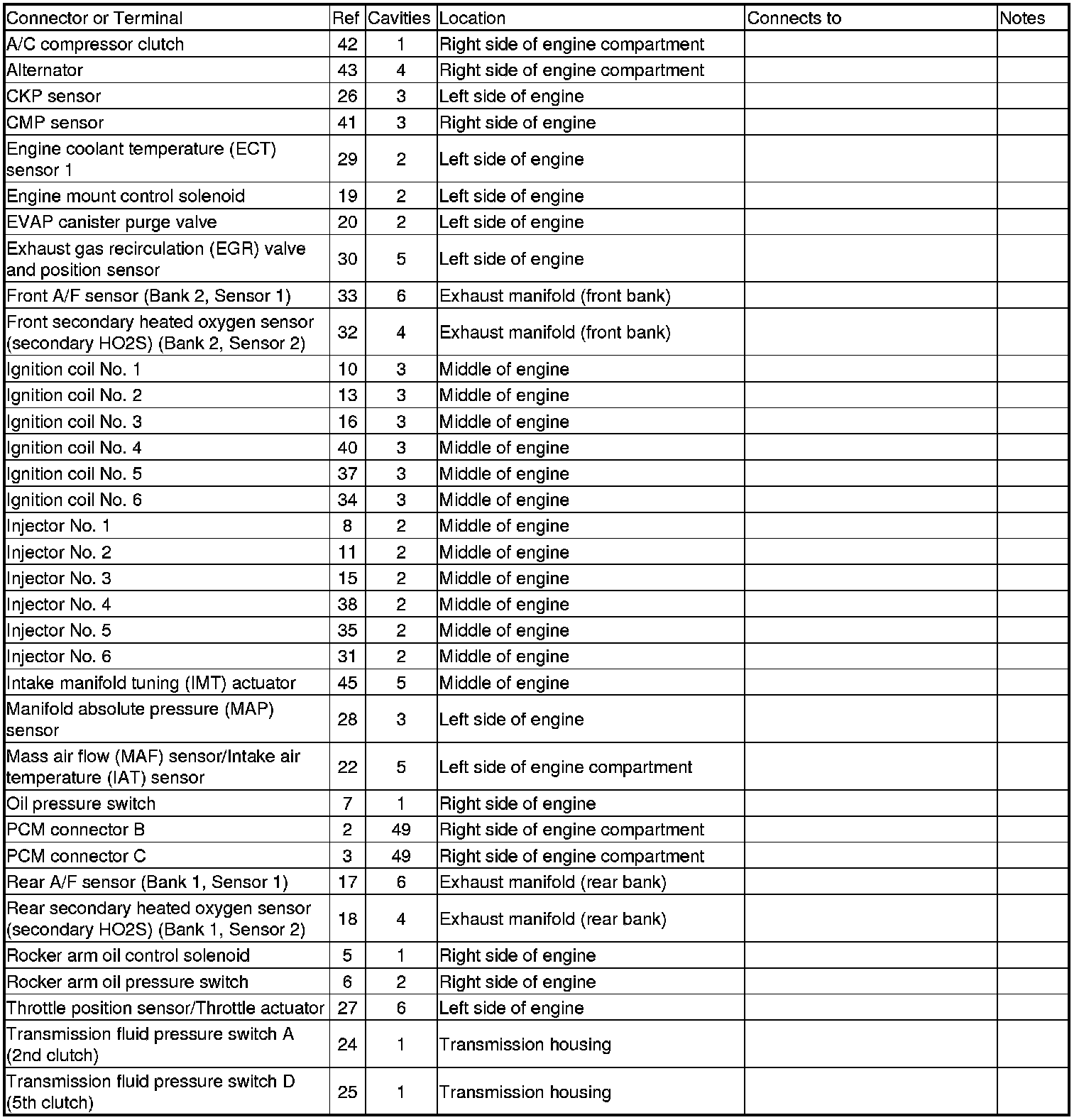

Connector and Harness Locations
Engine Wire Harness (Engine Section)

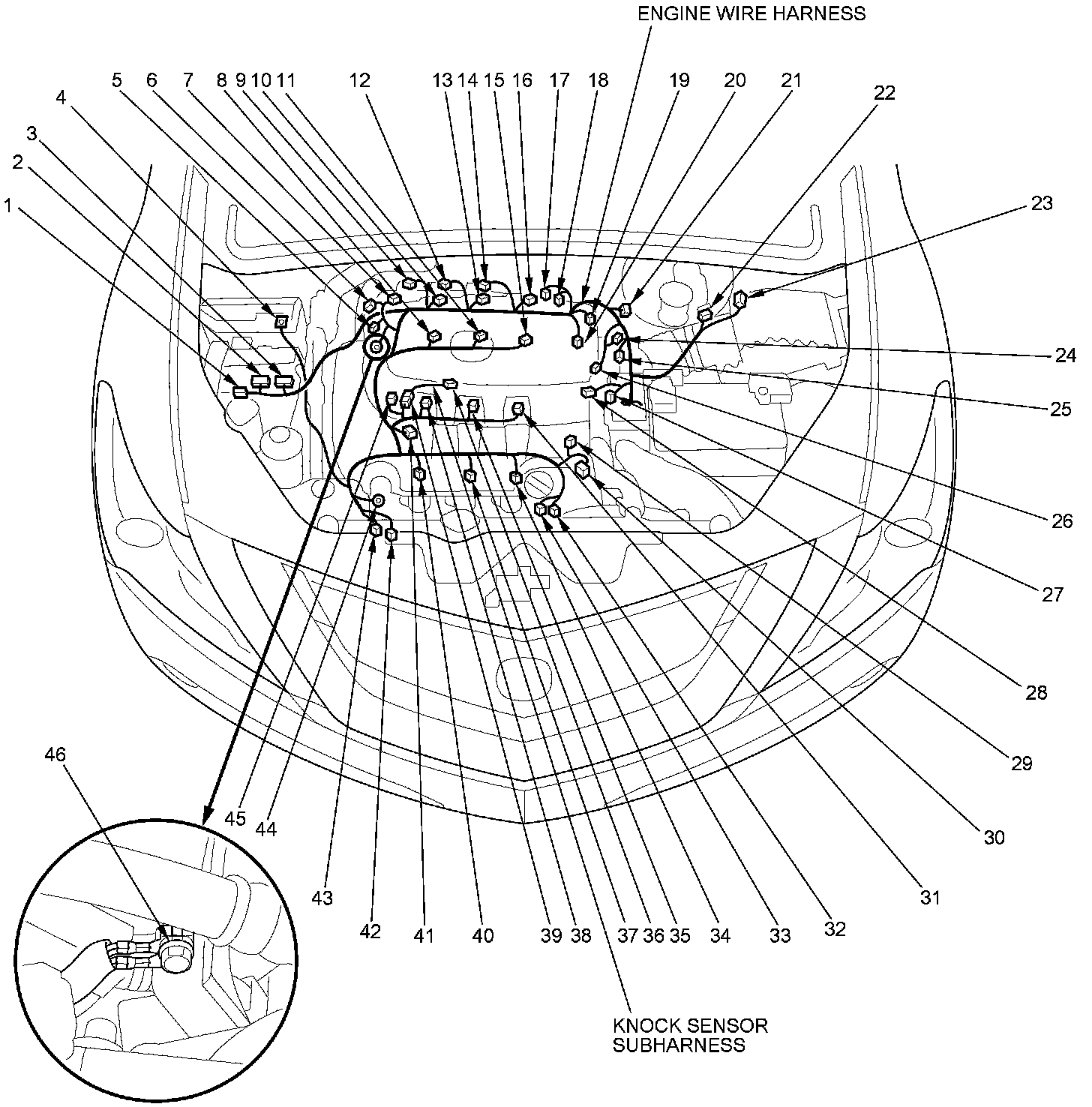

Harness View
