Home >> Acura >> 2010 >> ZDX V6-3.7L >> Repair and Diagnosis >> Locations >> Harness Locations >> Cable Reel Sub-Harness >> Connector to Harness Index

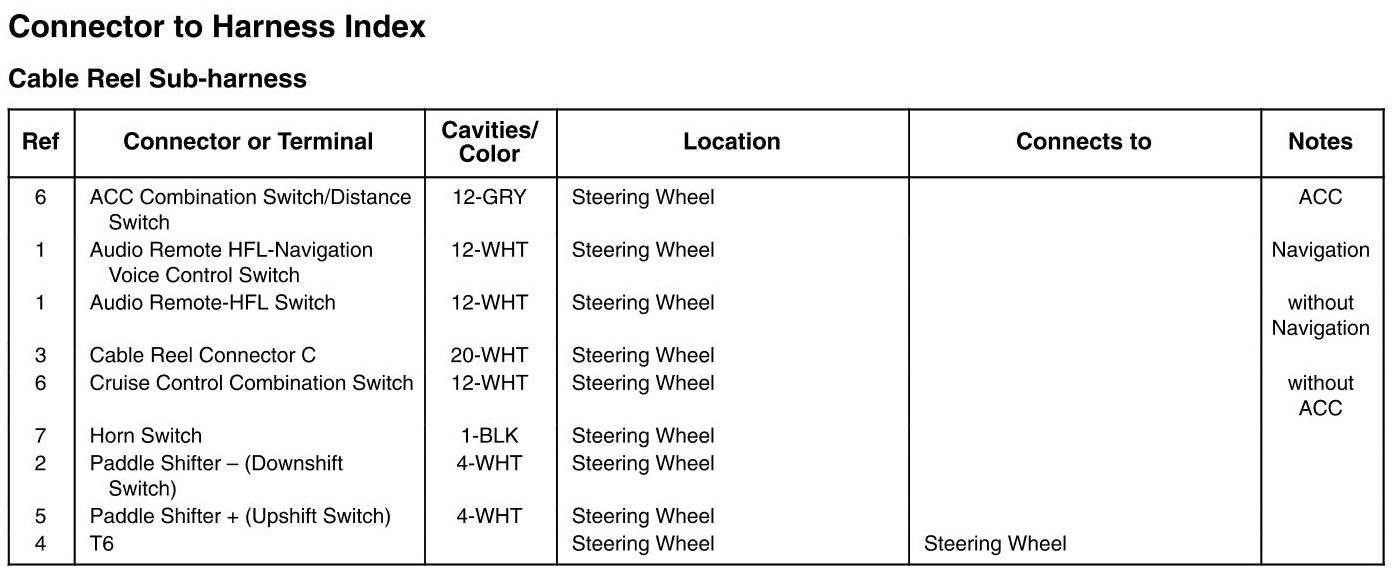

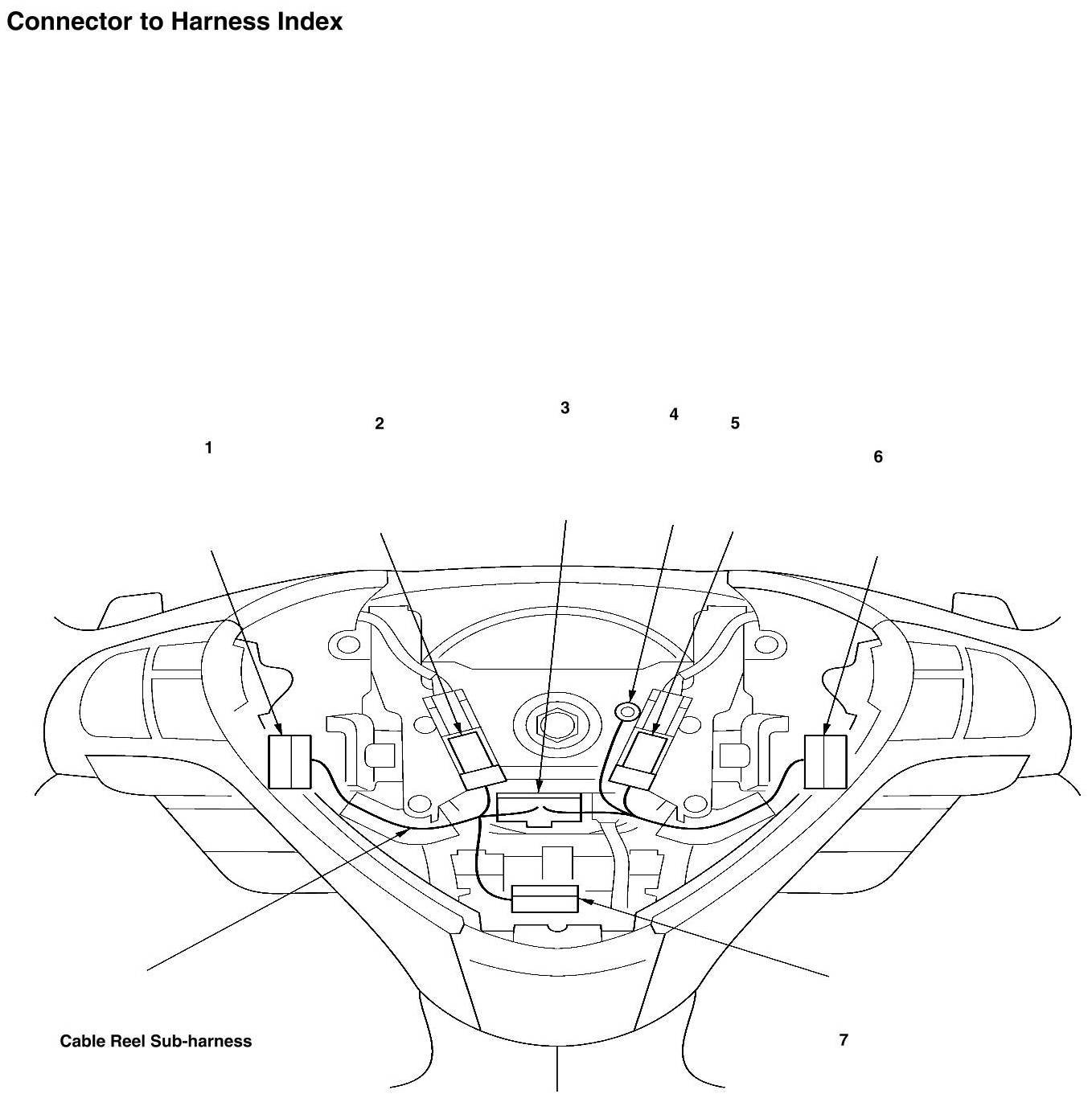

Connector to Harness Index
