Turn Signal Lamp: Service and Repair

Side Turn Signal Light Replacement

1. Remove the mirror holder Mirror Holder Replacement.

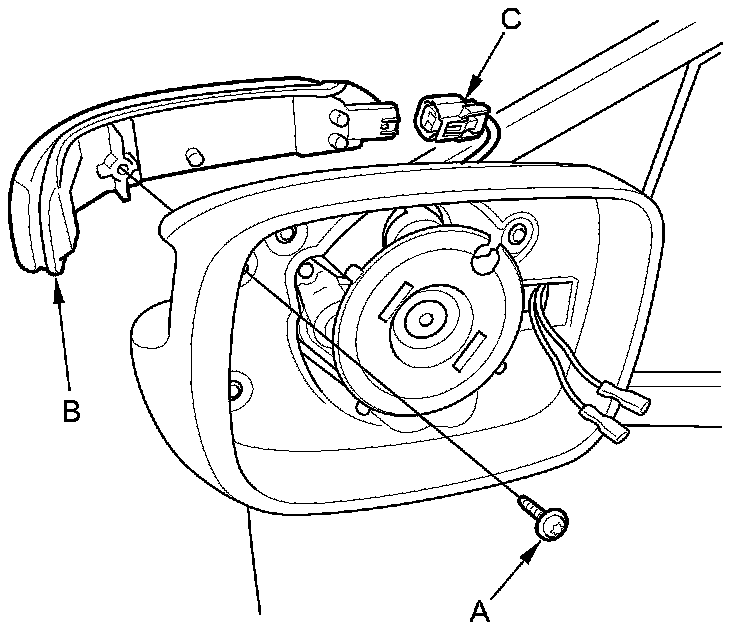

2. Remove the screw (A), then pull out side turn signal light (B), then disconnect the 2P connector (C) from it.






3. Install the light in the reverse order of removal.
