HID Unit Replacement

HID Unit Replacement

1. Turn the combination light switch OFF.

2. Make sure the ignition switch is in LOCK (0) position, or the vehicle ignition in the OFF mode, then do the battery terminal disconnection procedure Procedures.

3. Remove the headlight assembly Headlight Replacement.

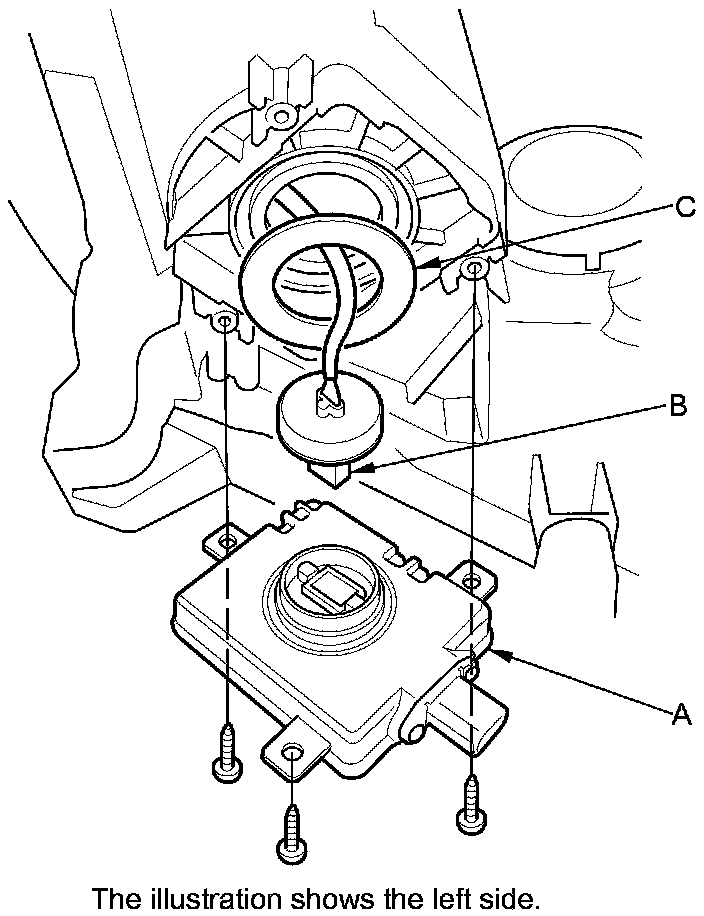

4. Remove the three mounting screws and the HID unit (A).





5. Disconnect the 4P connector (B) from the HID unit.

6. Inspect the gasket (C) for damage. If damaged, replace it.

7. Install the HID unit in the reverse order of removal.

8. Do the battery terminal reconnection procedure Procedures.

9. After replacement, adjust the headlight Adjustments.
