Fog/Driving Lamp: Service and Repair

Fog Light Replacement

1. Remove the front bumper Front Bumper, and disconnect the connectors from the fog lights.

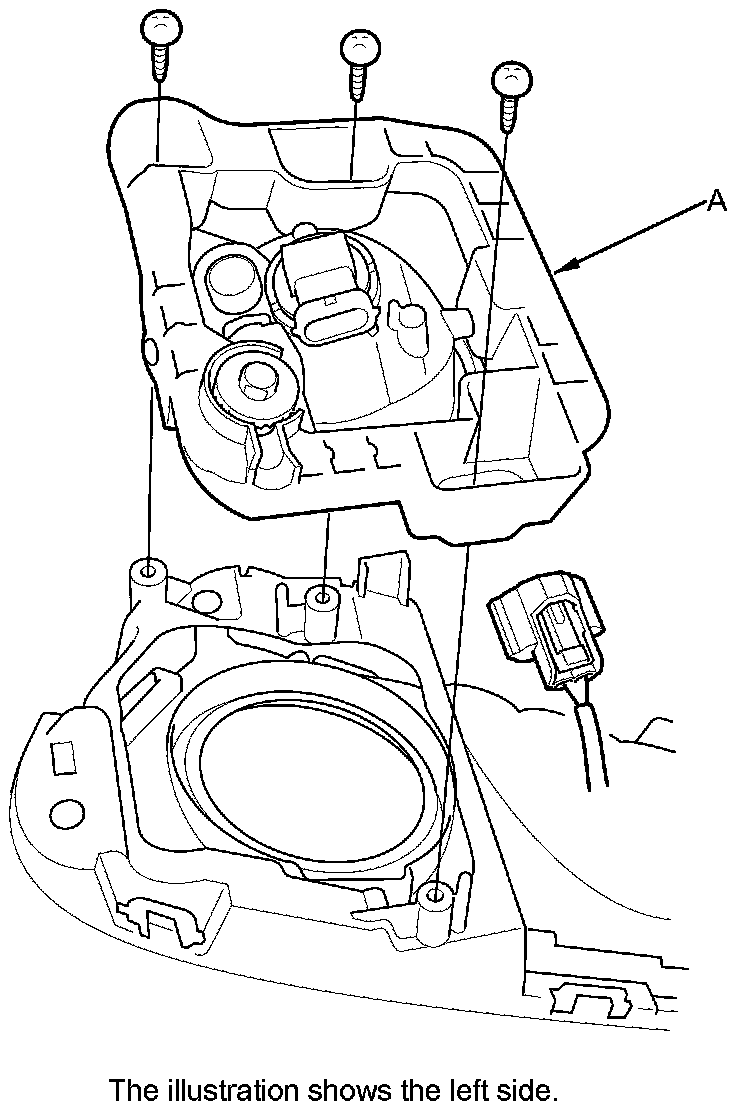

2. Remove the three screws, then remove the fog light (A) from the front bumper.





3. Install the fog light in the reverse order of removal.

4. After replacement, adjust the fog lights to local requirements.
