Door Lamp: Service and Repair

Door Courtesy Light Replacement

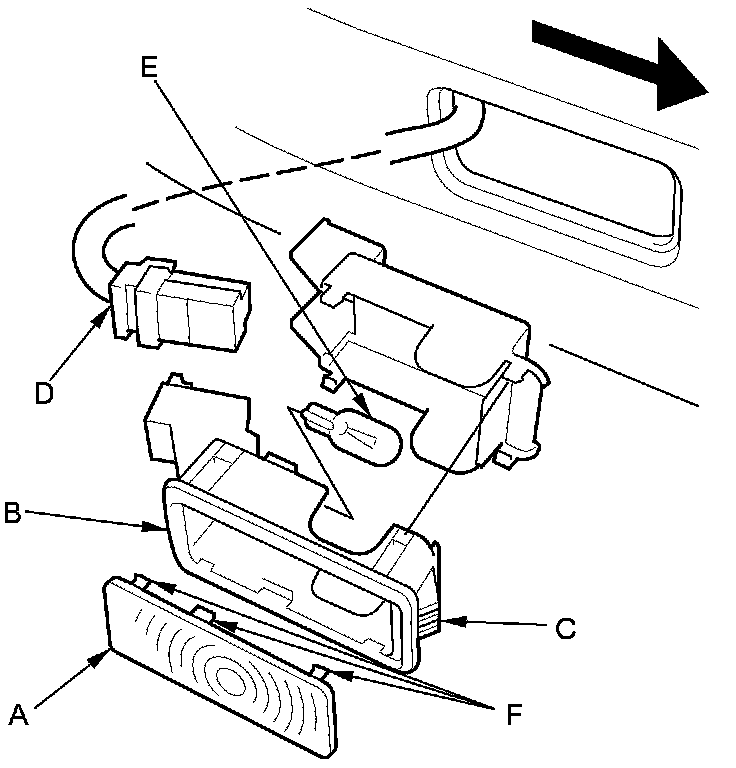

1. Carefully pry off the lens (A) with a small screwdriver.









2. Carefully remove the housing (B) from the door panel by prying at the lift point (C), then disconnect the 2P connector (D).

3. Remove the bulb (E) from the socket.

4. Install the parts in the reverse order of removal. Note the direction of the lens lock tabs (F).
