Home >> Acura >> 2010 >> ZDX V6-3.7L >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Assembly >> Diagrams >> Audio and HVAC Switch Panel Connector View (Without Navigation)

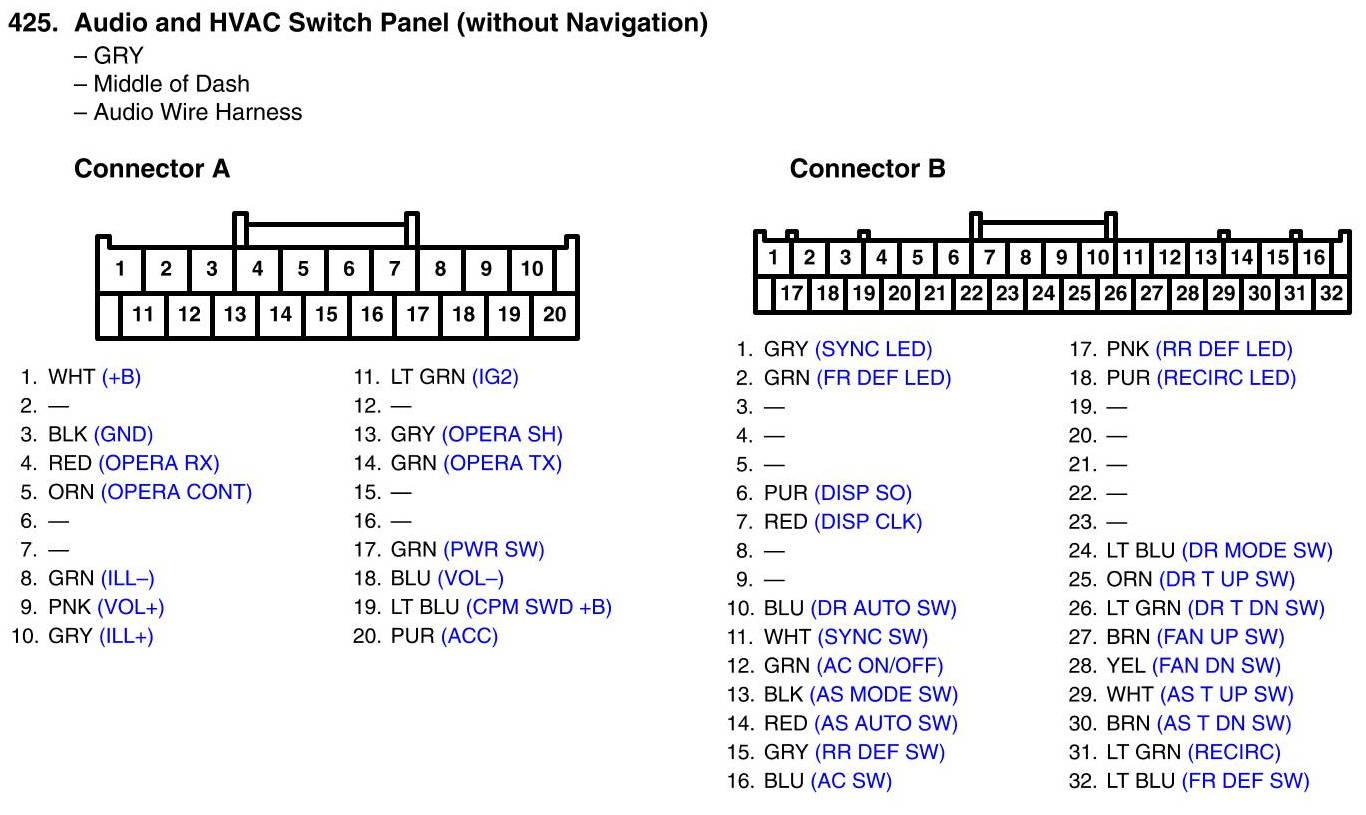

Audio and HVAC Switch Panel Connector View (Without Navigation)
