Oil Spray Jet: Service and Repair

Engine Oil Jet Replacement

1. Remove the crankshaft from the engine block Crankshaft and Piston Removal.

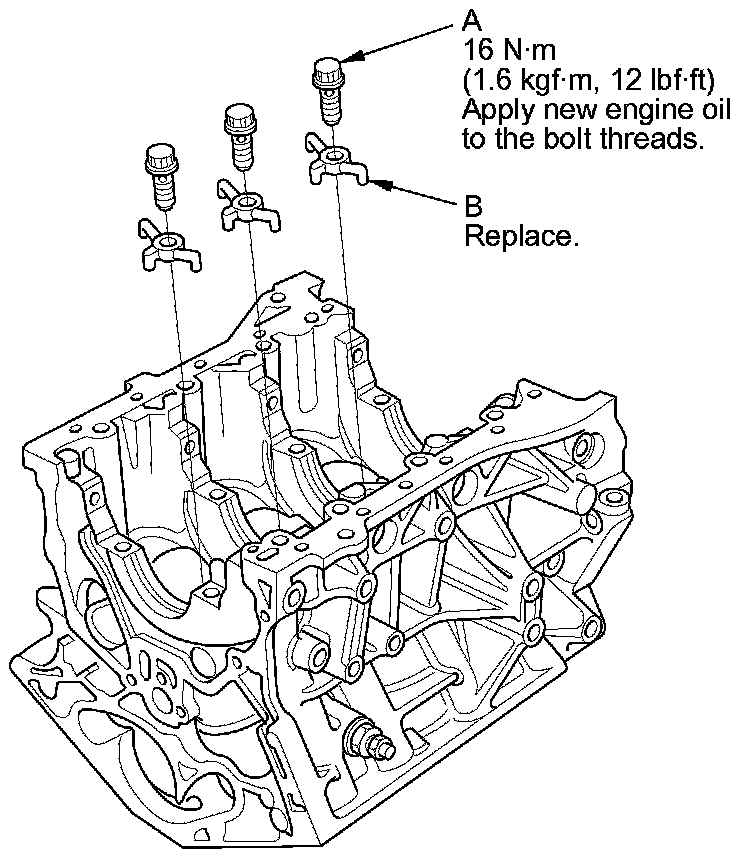

2. Remove the oil jet bolt (A), then remove the oil jet (B).





3. Carefully install the new oil jet and tighten the oil jet bolt.

4. Install the crankshaft Crankshaft And Piston Installation.
