Home >> Acura >> 2010 >> ZDX V6-3.7L >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Cylinder Block Assembly >> Locations

Cylinder Block Assembly: Locations

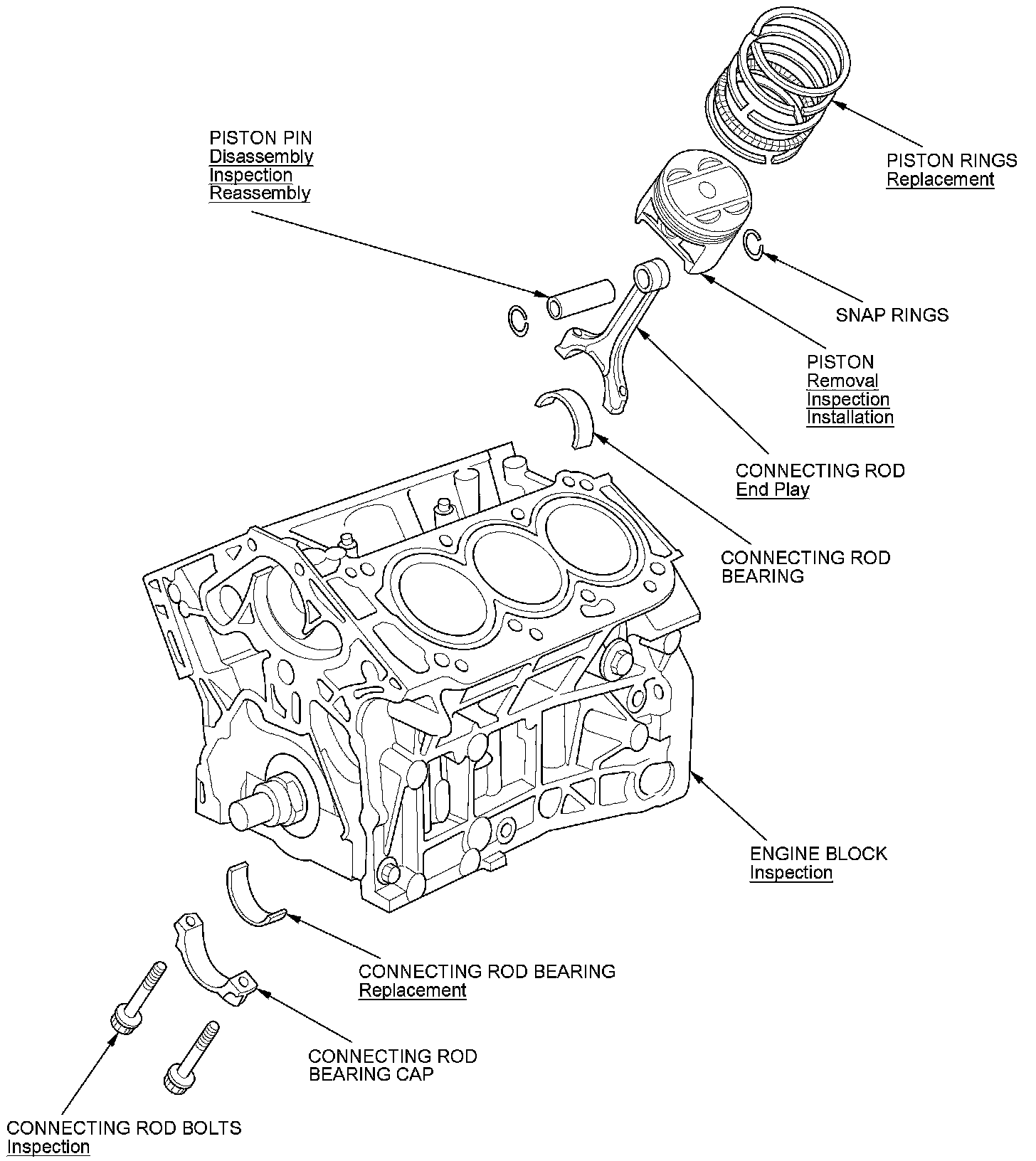

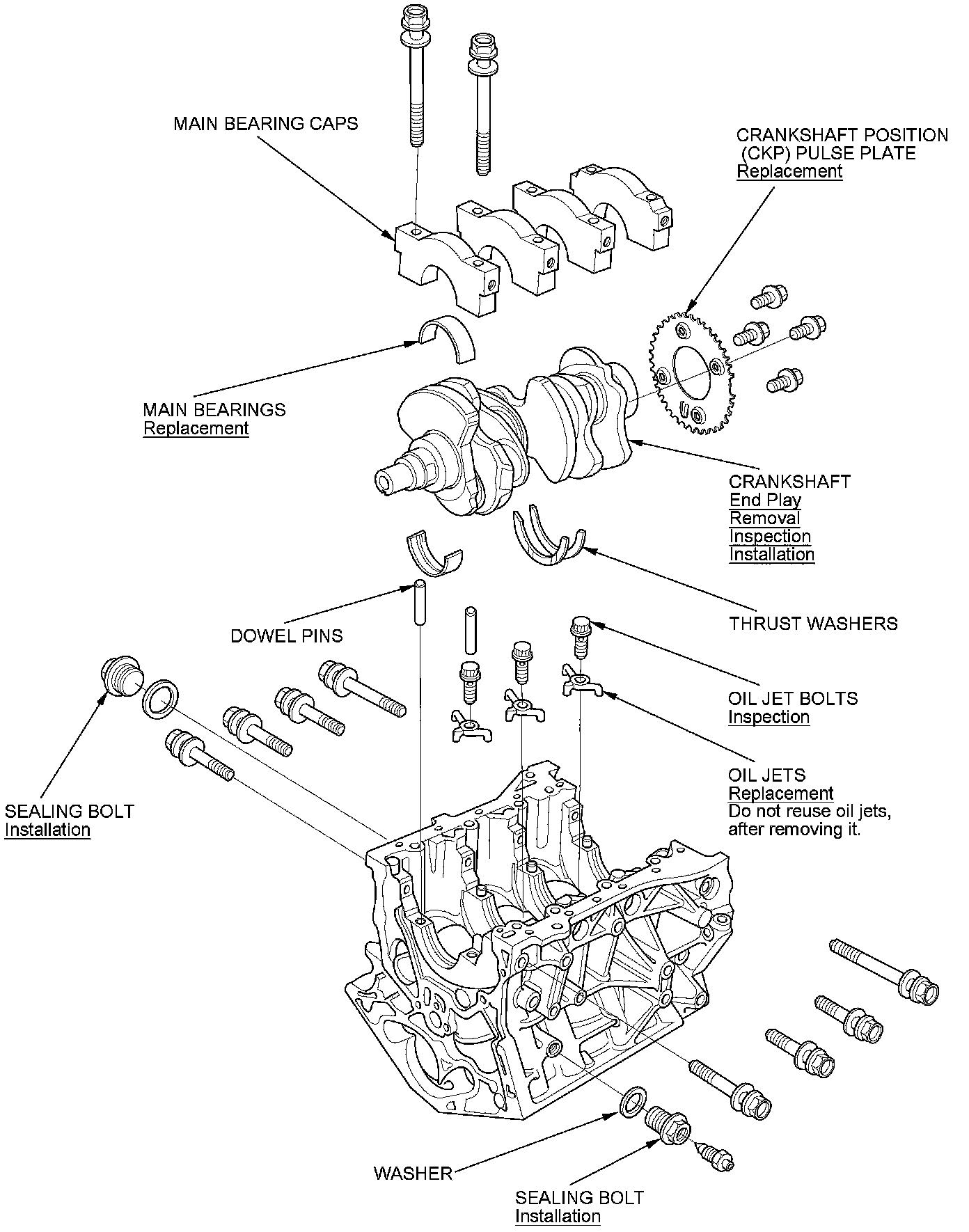

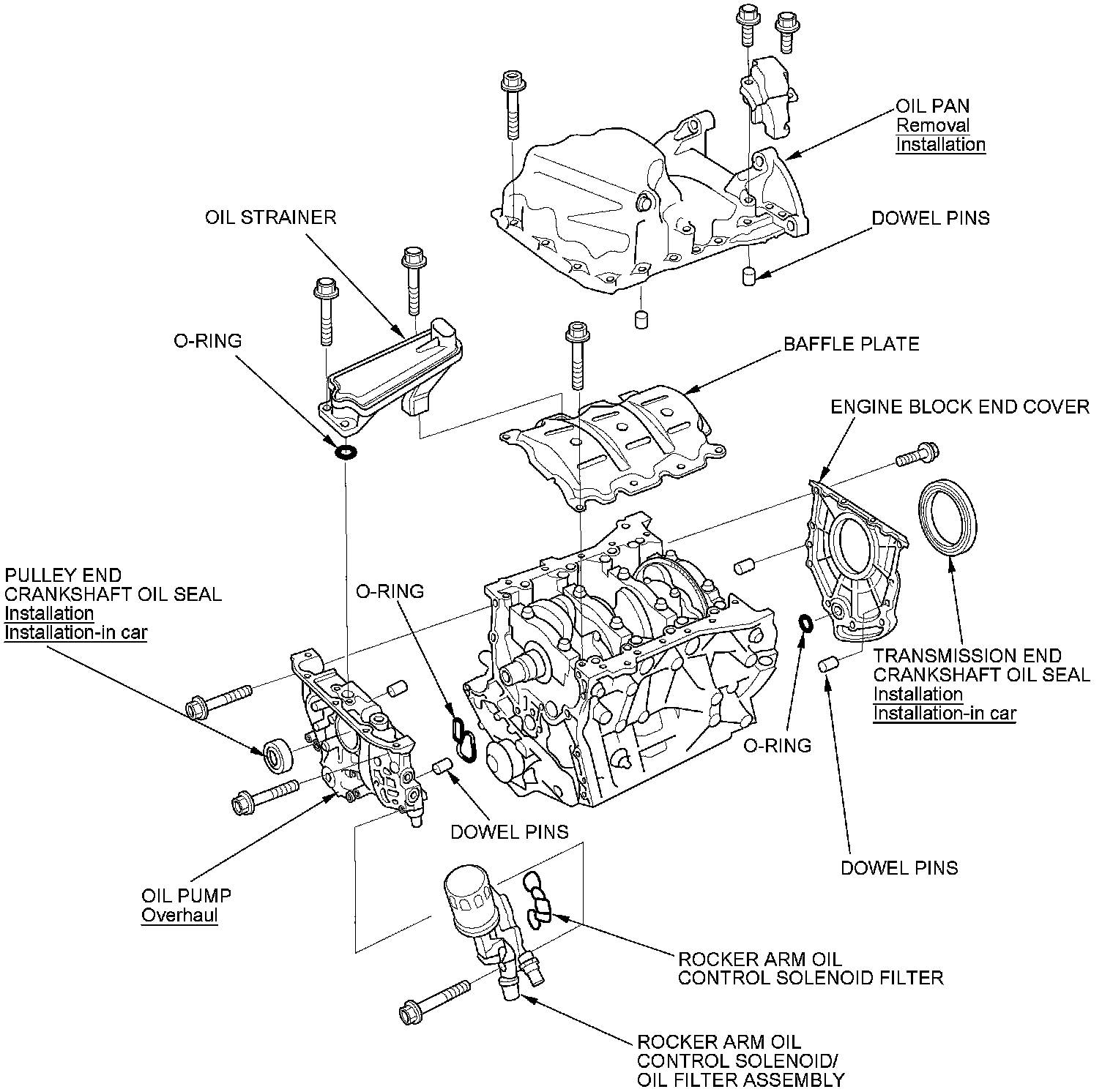

Engine Block Assembly Component Location Index
