Crankshaft Gear/Sprocket: Service and Repair

Timing Belt Drive Pulley Replacement

1. Remove the timing belt Timing Belt Removal.

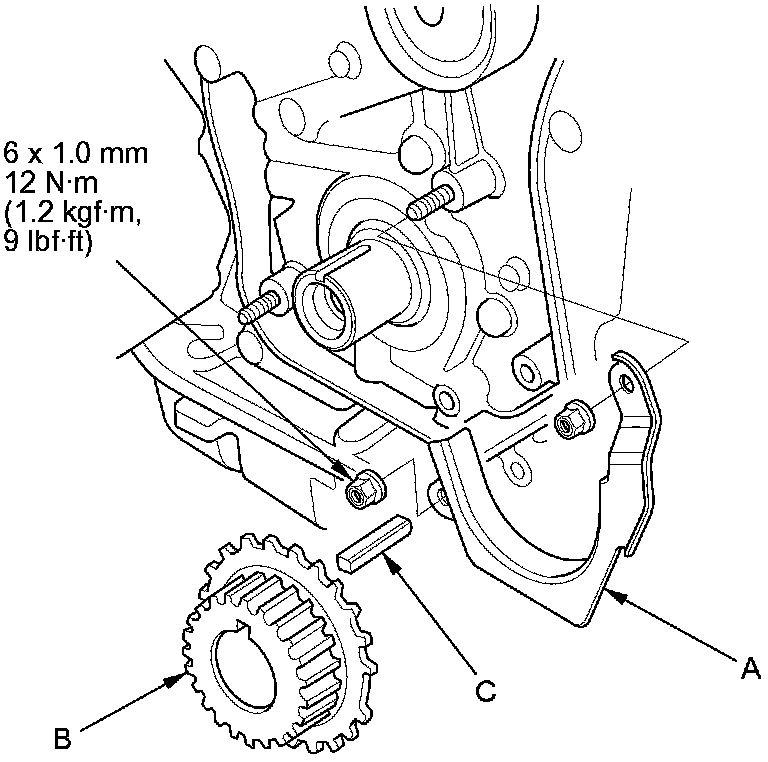

2. Remove the timing belt stopper (A), then remove the timing belt drive pulley (B) and the key (C).





3. Inspect the timing belt drive pulley and the key for damage. If it is cracked or damaged, replace the timing belt drive pulley and the key.

4. Install the new timing belt drive pulley and the key, then install the timing belt stopper.

5. Install the timing belt Timing Belt Installation.

6. Do the crankshaft position (CKP) pattern clear/CKP pattern learn procedure Initial Inspection and Diagnostic Overview.
