ECT Sensor 1 Replacement

ECT Sensor 1 Replacement

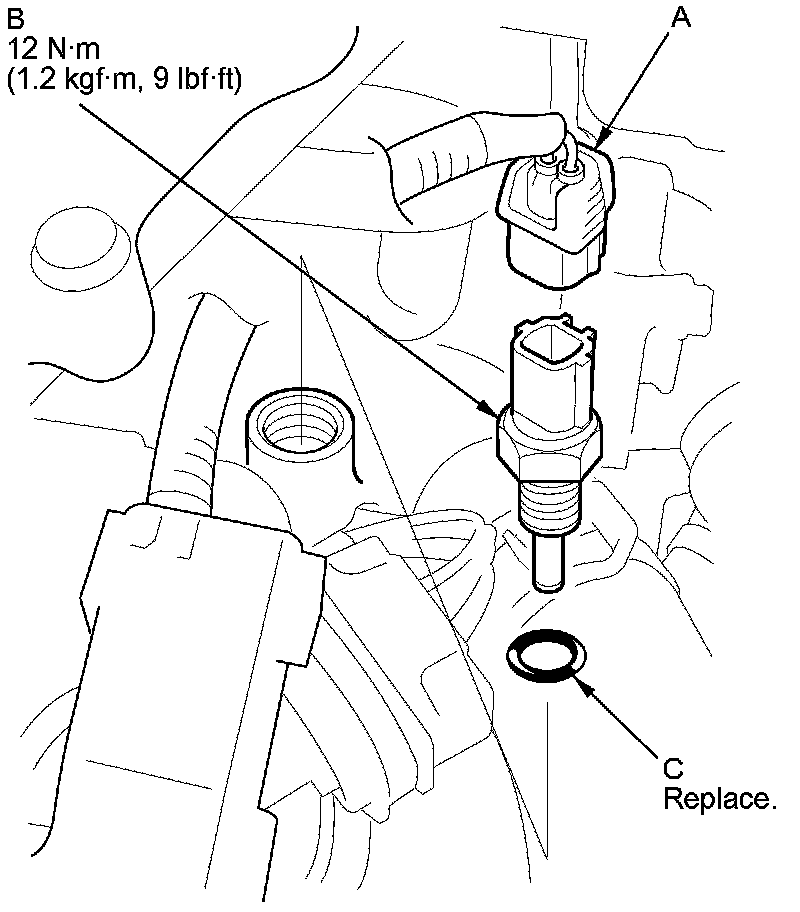

1. Drain the engine coolant Service and Repair.

2. Remove the engine cover Intake Manifold Removal/Installation.

3. Disconnect the ECT sensor 1 connector (A).





4. Remove ECT sensor 1 (B).

5. Install the parts in the reverse order of removal with a new O-ring (C), then refill the radiator with engine coolant Service and Repair.
