Home >> Acura >> 2010 >> ZDX V6-3.7L >> Repair and Diagnosis >> Diagrams >> Harness >> Right Engine Compartment Wire Harness, And Right Front Damper Sub-harness (IDS) Connector And Harness Locations

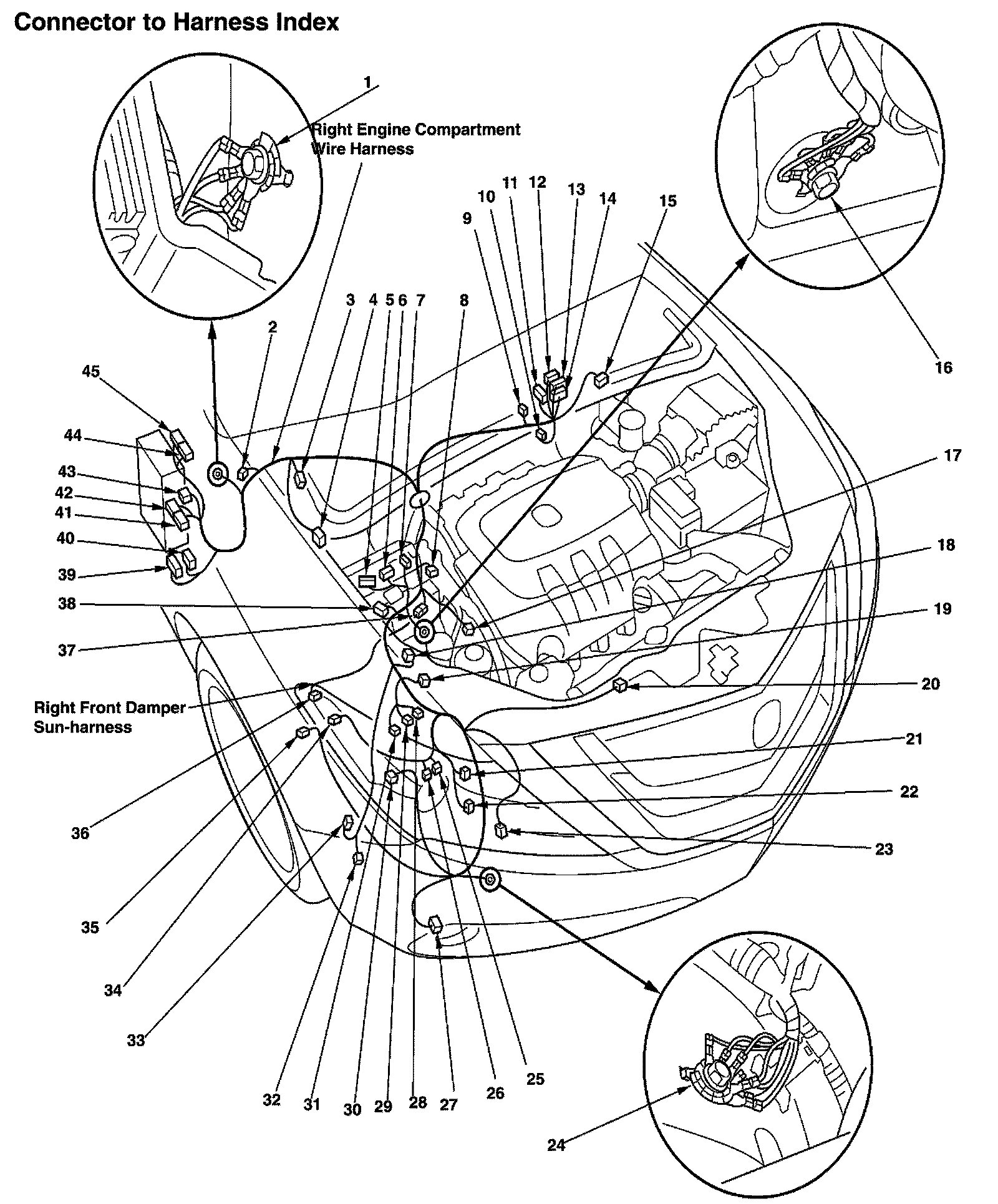

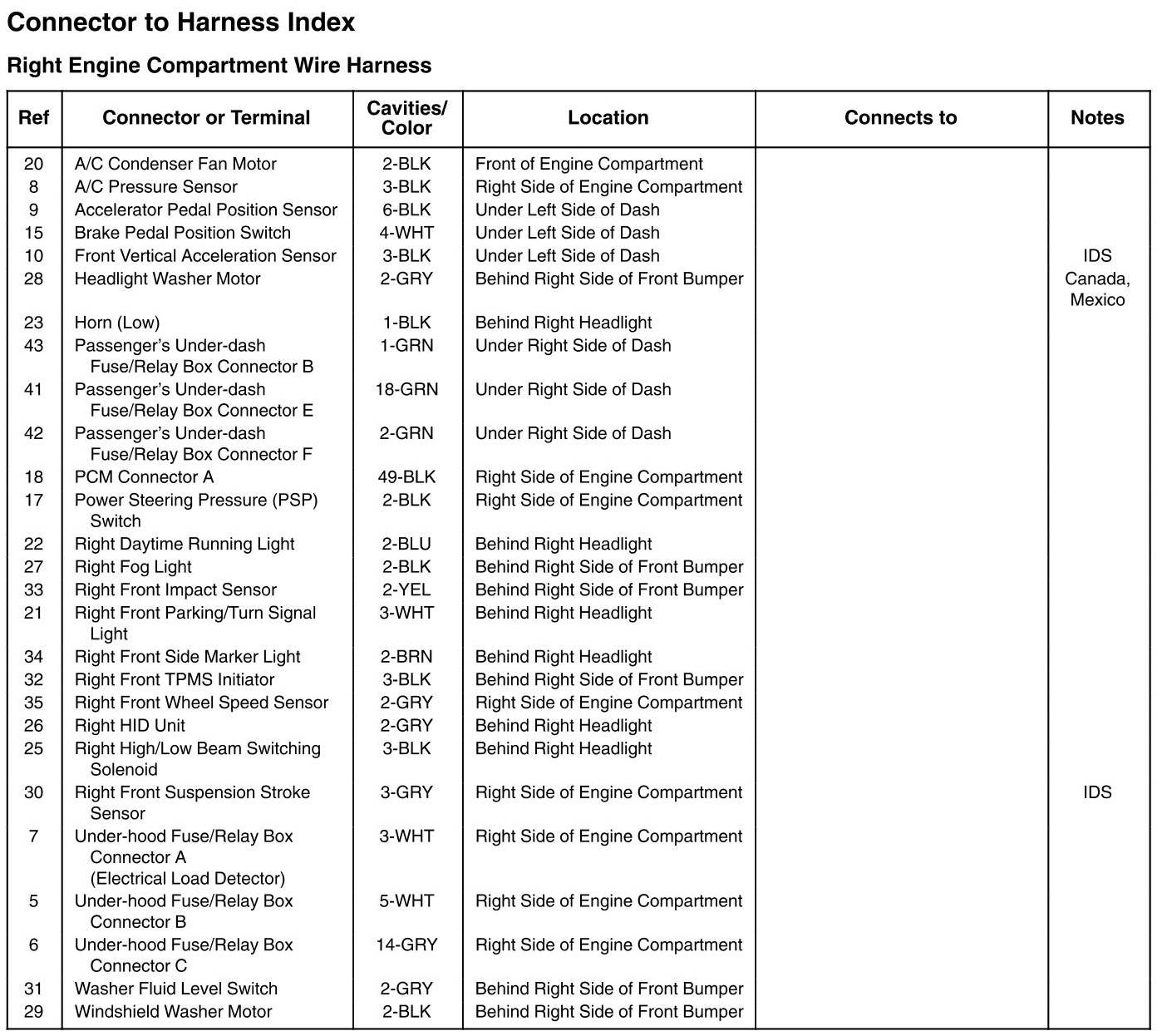

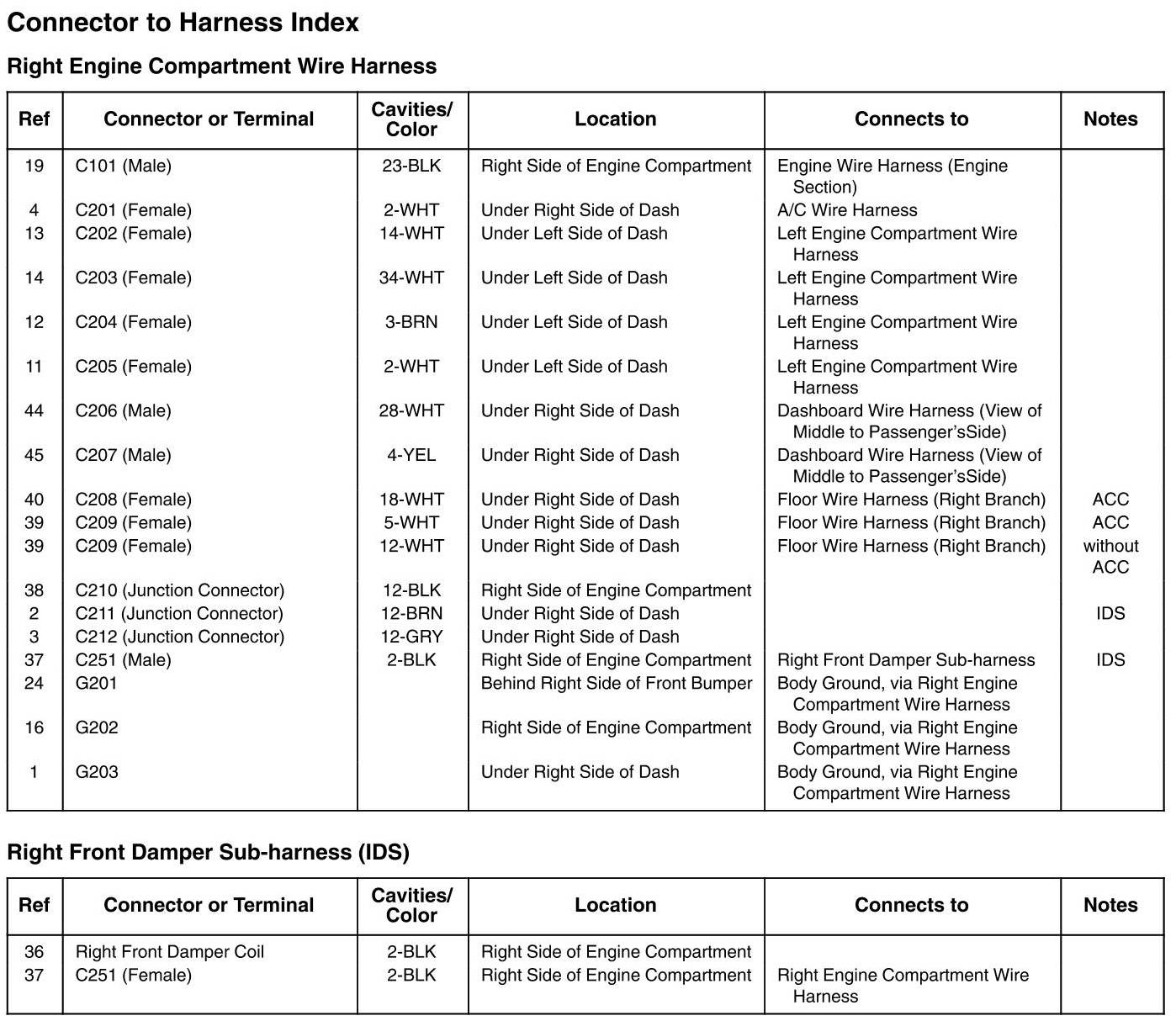

Right Engine Compartment Wire Harness, And Right Front Damper Sub-harness (IDS) Connector And Harness Locations
