Home >> Acura >> 2010 >> ZDX V6-3.7L >> Repair and Diagnosis >> Diagrams >> Harness >> Right Engine Compartment Wire Harness And Right Front Damper Sub-Harness (IDS)

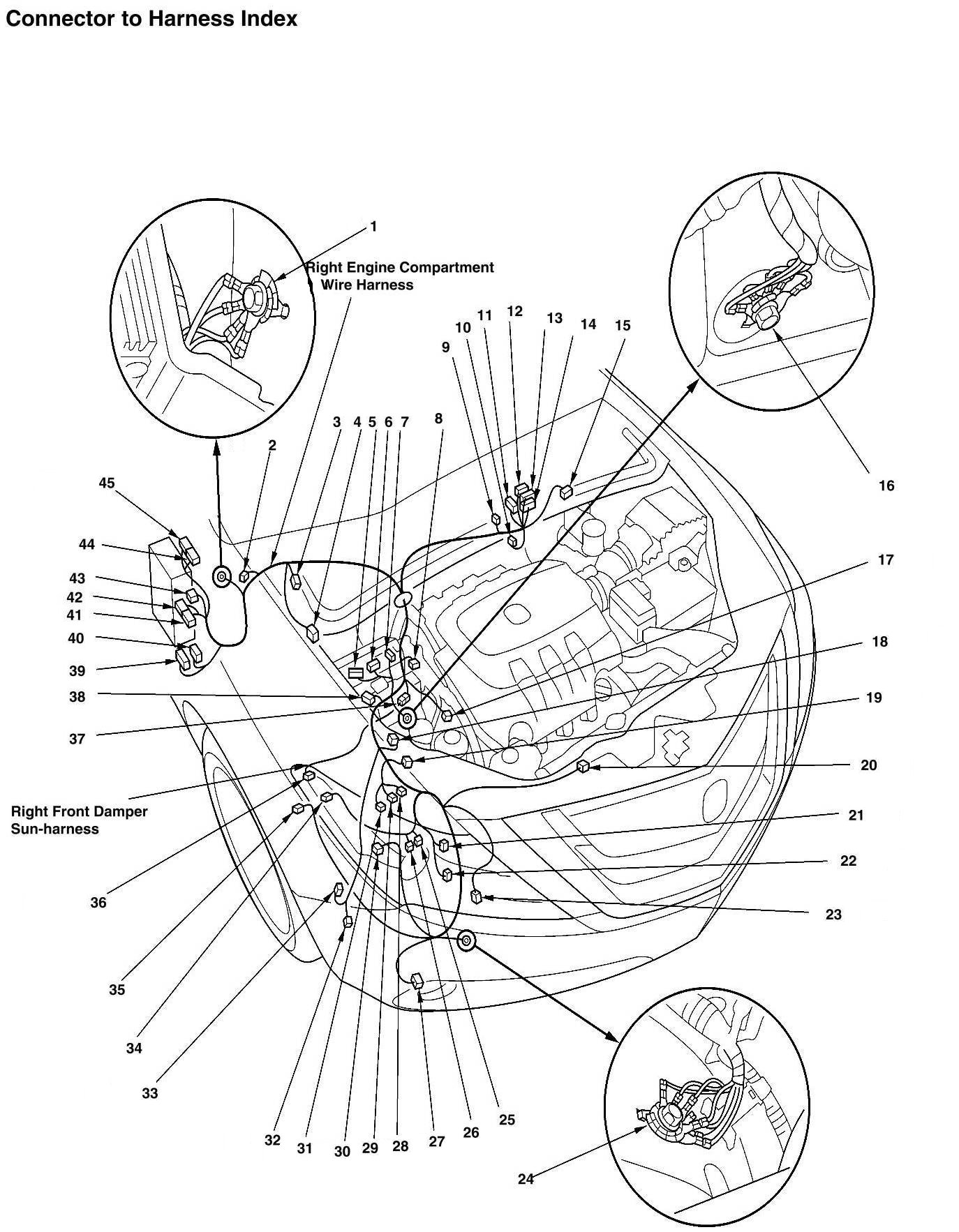

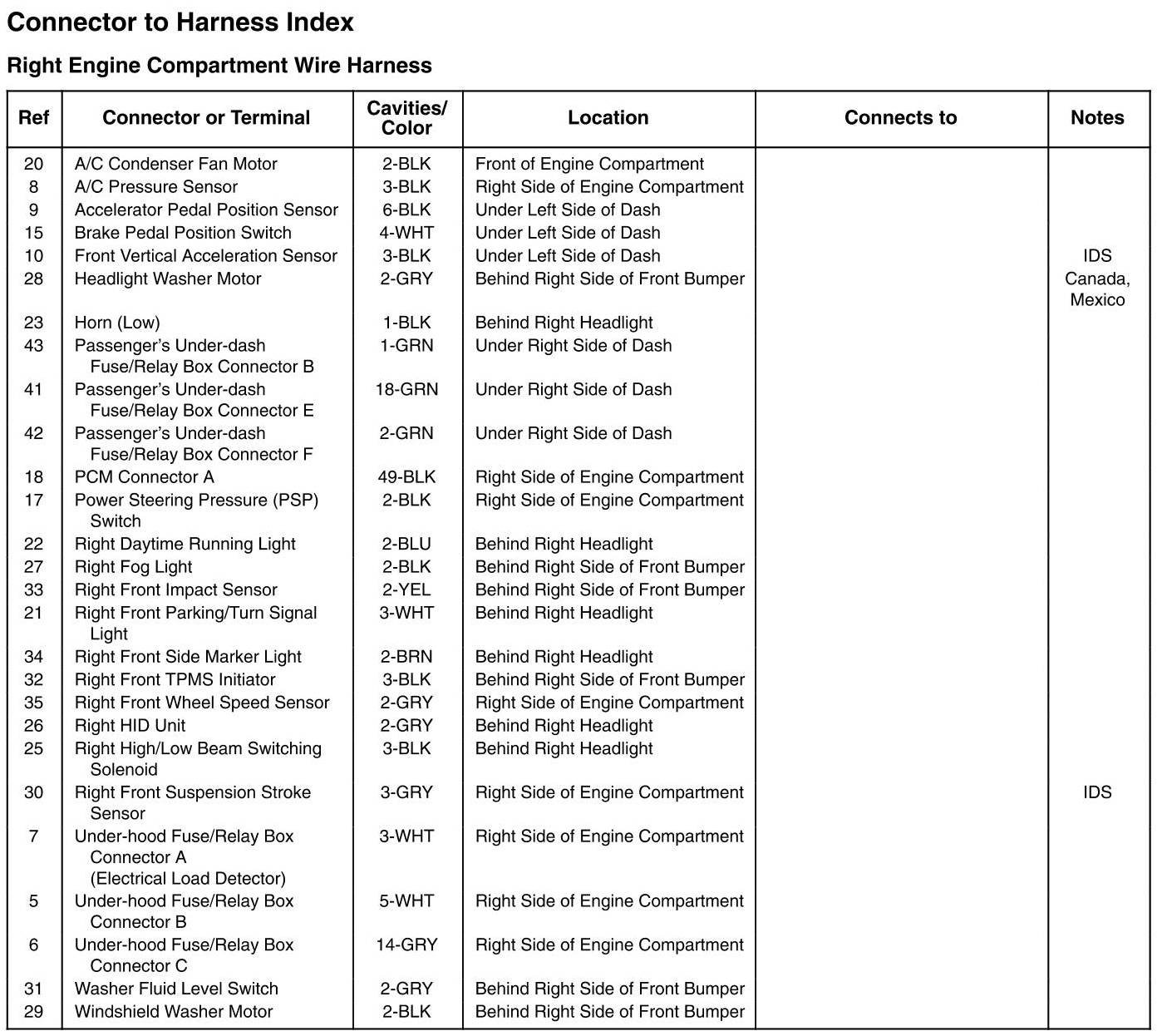

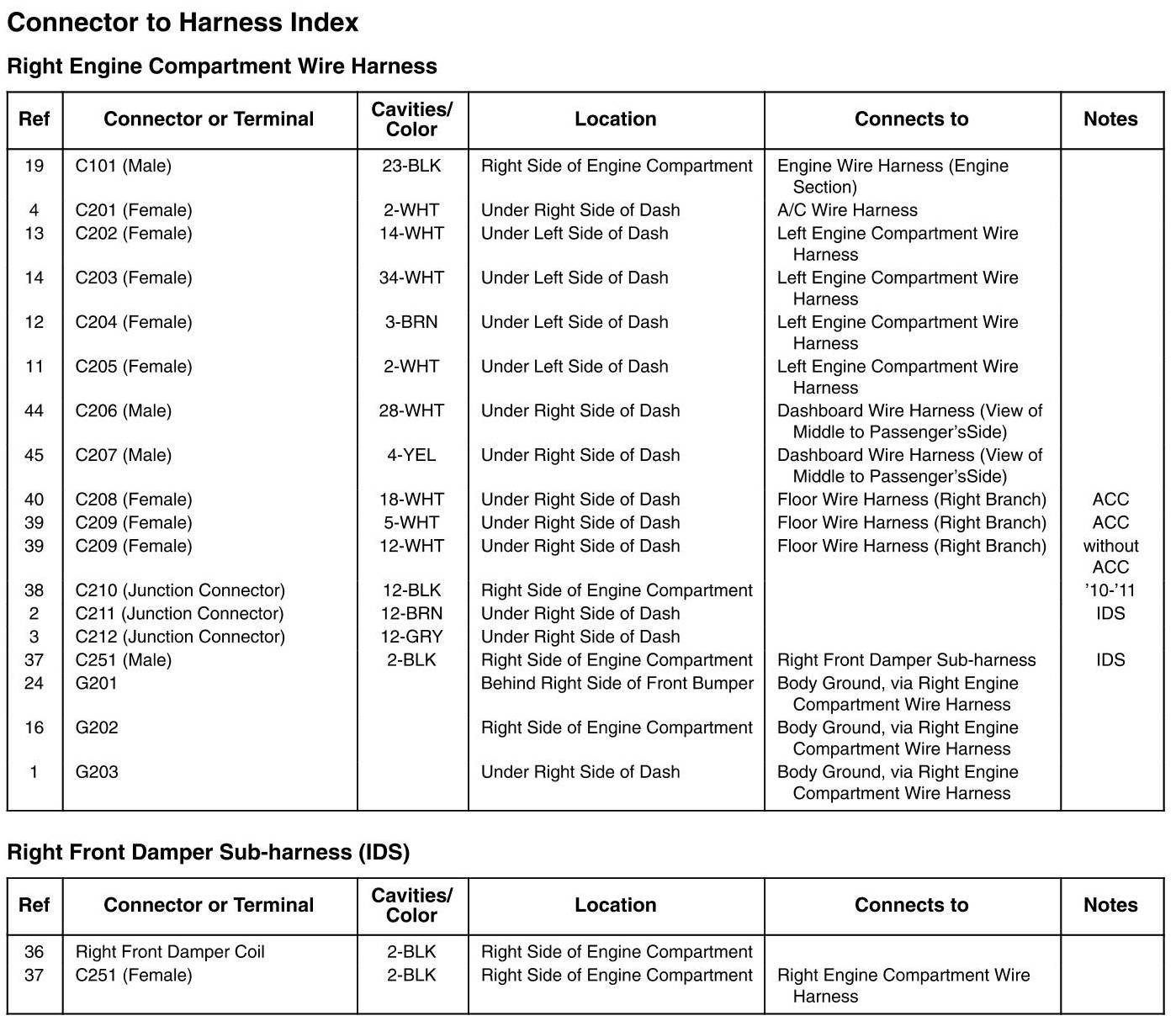

Right Engine Compartment Wire Harness And Right Front Damper Sub-Harness (IDS)
