Engine - Coolant Temperature Sensor/Switch
>>

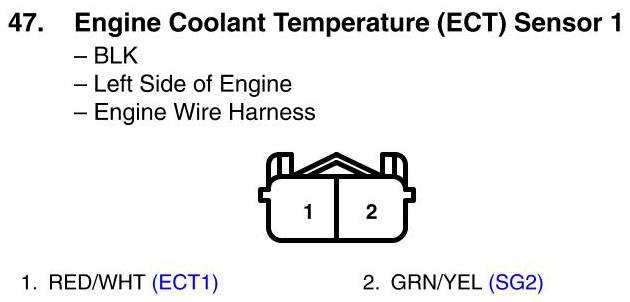

Engine Coolant Temperature (ECT) Sensor 1 Connector View
Engine Coolant Temperature (ECT) Sensor 1 Connector View
