Home >> Acura >> 2010 >> ZDX V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Courtesy Lamp >> System Diagram >> Driver's Door Inner Handle Light Connector View (Inner Handle Lights)

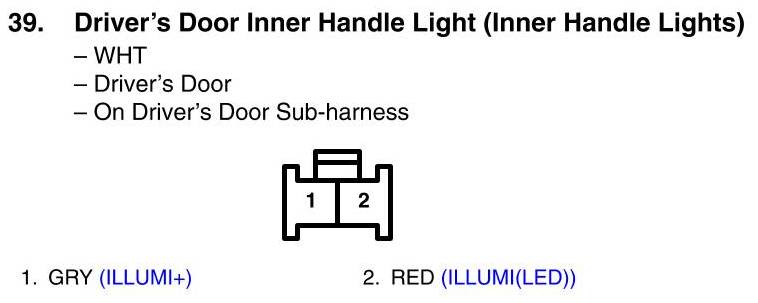

Driver's Door Inner Handle Light Connector View (Inner Handle Lights)
