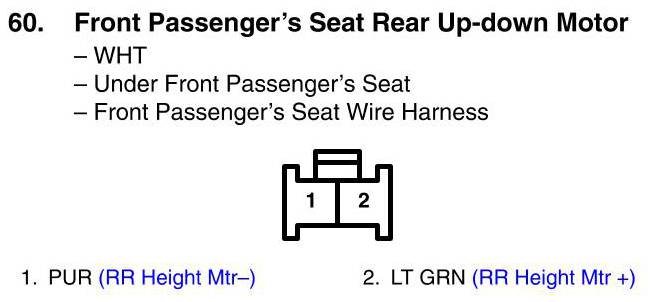

View 60 - Front Passenger's Seat Rear Up-down Motor Connector View
View 60 - Front Passenger's Seat Rear Up-down Motor Connector View
