Home >> Acura >> 2010 >> ZDX V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 433 - E-Pretensioner Unit Connector View (ACC)

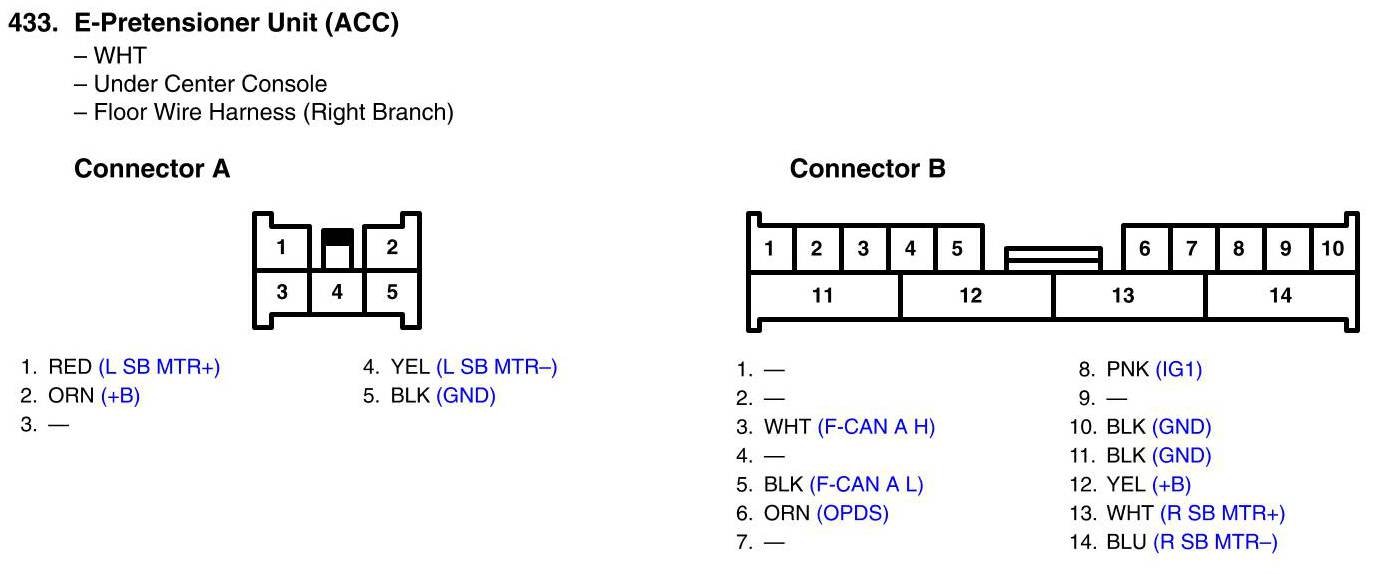

View 433 - E-Pretensioner Unit Connector View (ACC)
