Home >> Acura >> 2010 >> ZDX V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 366 - C606 (Junction Connector) Connector View (BSI, IDS)

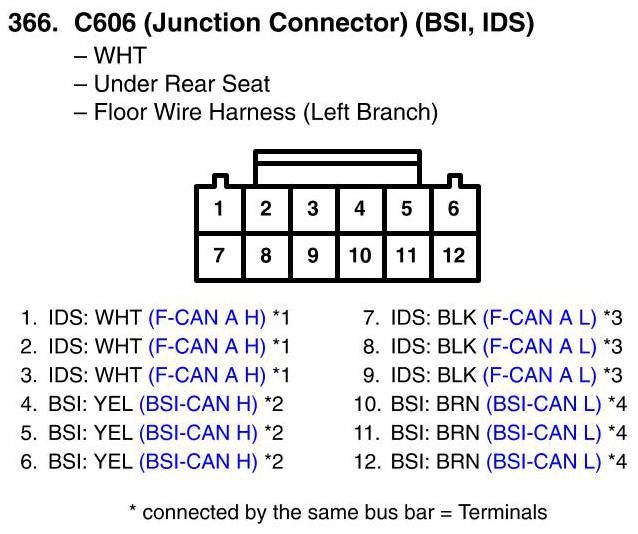

View 366 - C606 (Junction Connector) Connector View (BSI, IDS)
