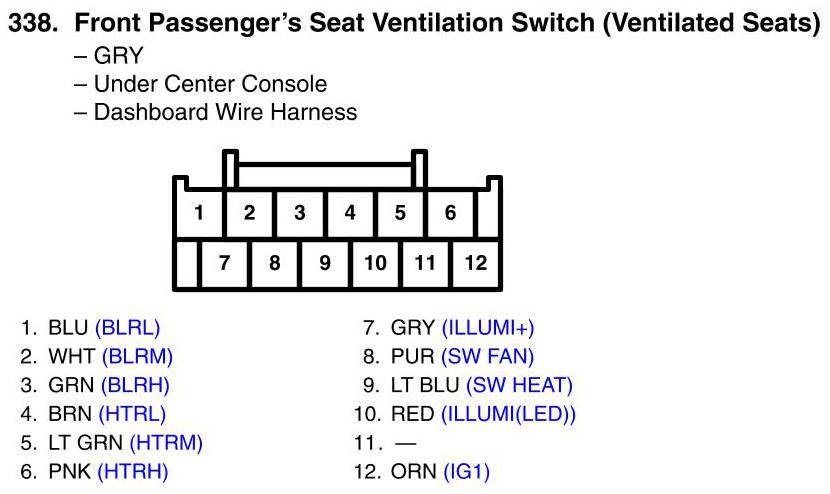

View 338 - Front Passenger's Seat Ventilation Switch Connector View (Ventilated Seats)
View 338 - Front Passenger's Seat Ventilation Switch Connector View (Ventilated Seats)
