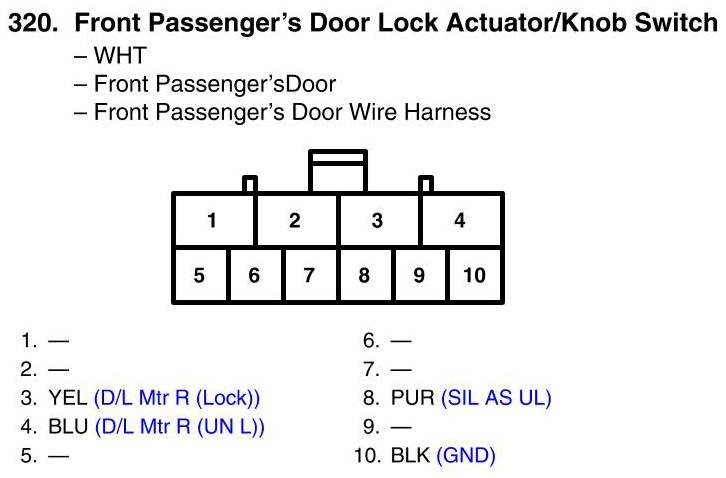

View 320 - Front Passenger's Door Lock Actuator/Knob Switch Connector View
View 320 - Front Passenger's Door Lock Actuator/Knob Switch Connector View
