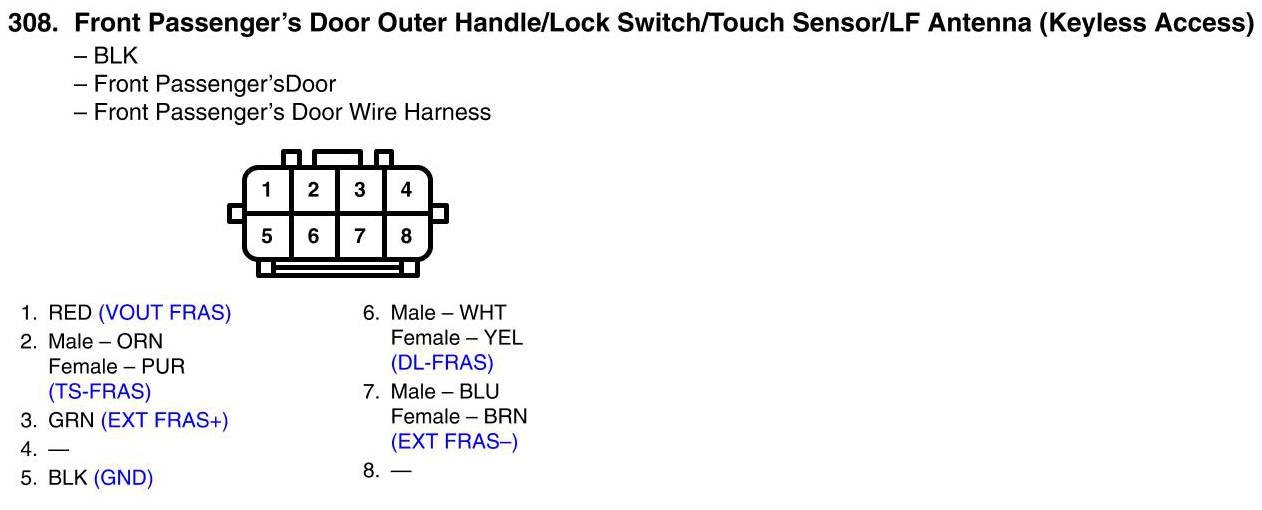

View 308 - Front Passenger's Door Outer Handle/Lock Switch/Touch Sensor/LF Antenna Connector View (Keyless Access)
View 308 - Front Passenger's Door Outer Handle/Lock Switch/Touch Sensor/LF Antenna Connector View (Keyless Access)
