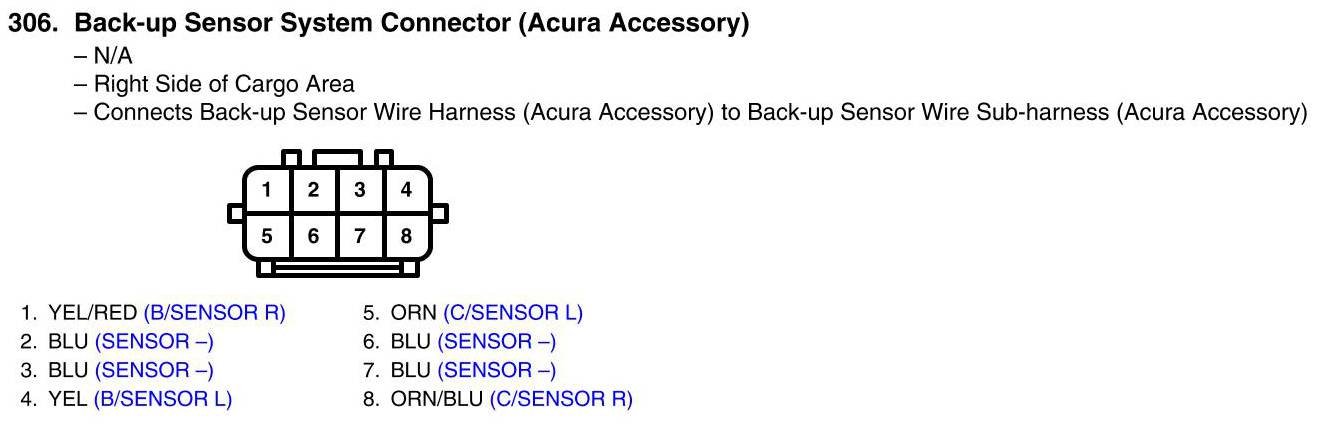

View 306 - Back-Up Sensor System Connector Connector View (Acura Accessory)
View 306 - Back-Up Sensor System Connector Connector View (Acura Accessory)
