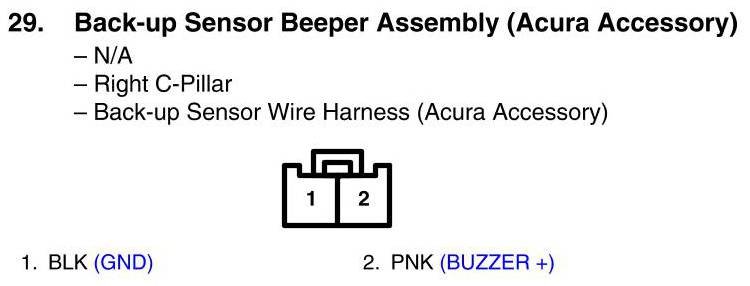

View 29 - Back-Up Sensor Beeper Assembly Connector View (Acura Accessory)
View 29 - Back-Up Sensor Beeper Assembly Connector View (Acura Accessory)
