Home >> Acura >> 2010 >> ZDX V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 281 - Left Rear Seat Heater Switch Connector View (Rear Seat Heaters)

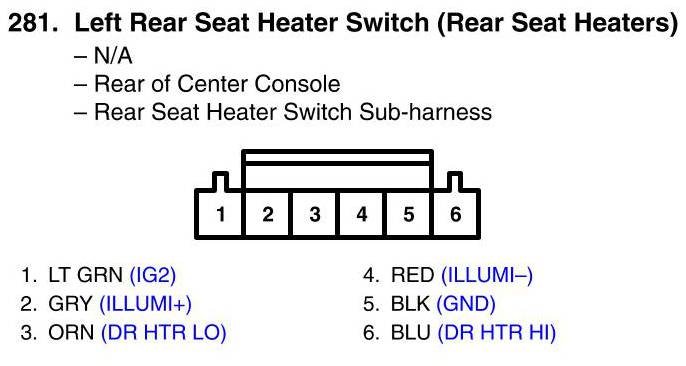

View 281 - Left Rear Seat Heater Switch Connector View (Rear Seat Heaters)
