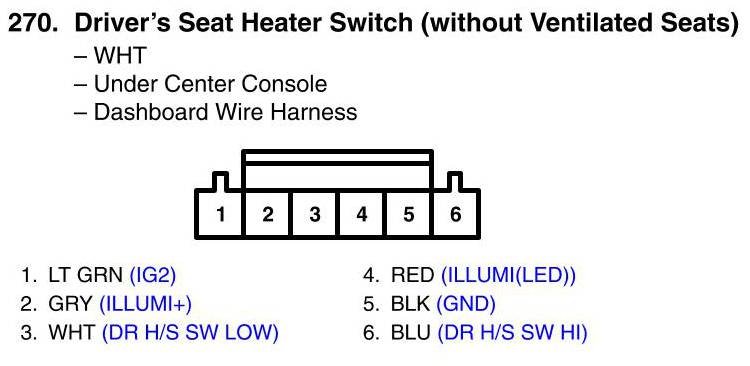

View 270 - Driver's Seat Heater Switch Connector View (Without Ventilated Seats)
View 270 - Driver's Seat Heater Switch Connector View (Without Ventilated Seats)
