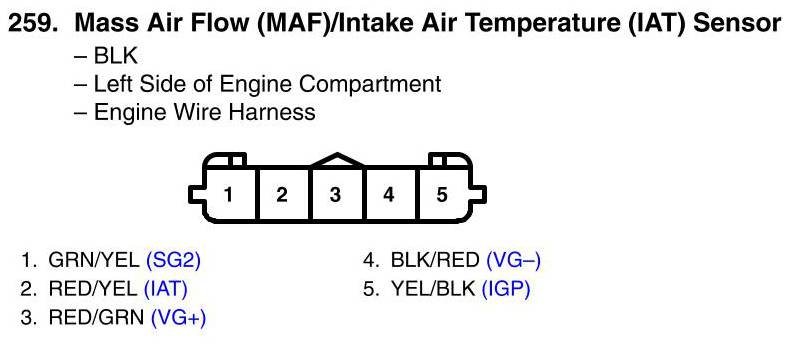

View 259 - Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor Connector View
View 259 - Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor Connector View
