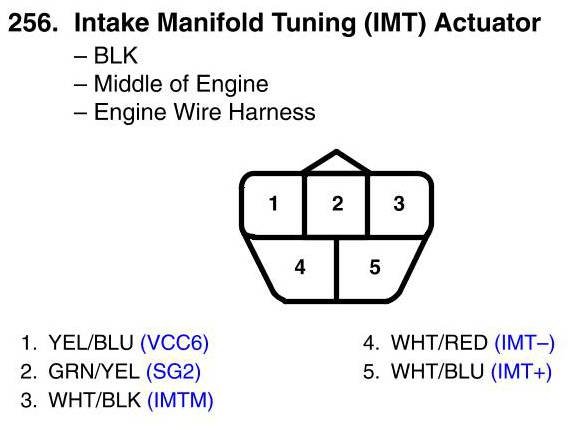

View 256 - Intake Manifold Tuning (IMT) Actuator Connector View
View 256 - Intake Manifold Tuning (IMT) Actuator Connector View
