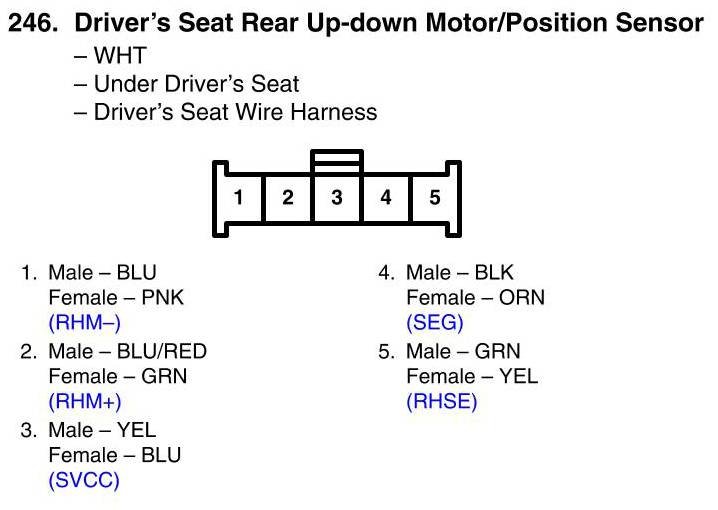

View 246 - Driver's Seat Rear Up-down Motor/Position Sensor Connector View
View 246 - Driver's Seat Rear Up-down Motor/Position Sensor Connector View
