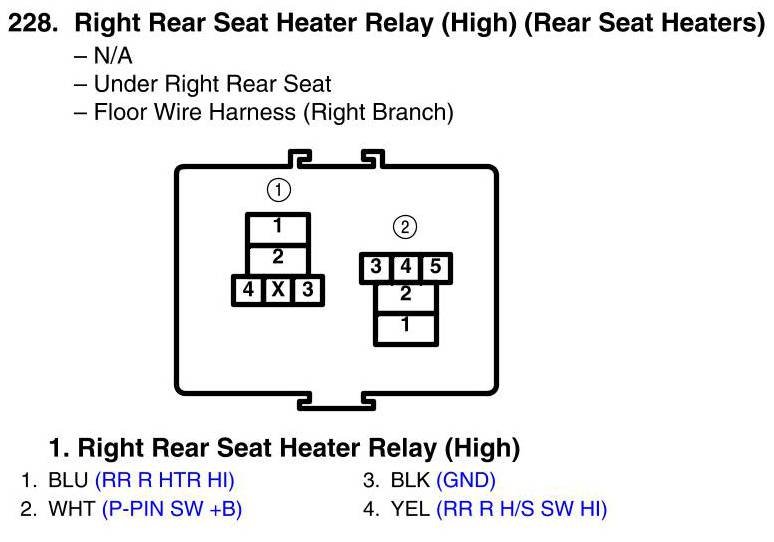

View 228 - Right Rear Seat Heater Relay (High) Connector View (Rear Seat Heaters)
View 228 - Right Rear Seat Heater Relay (High) Connector View (Rear Seat Heaters)
