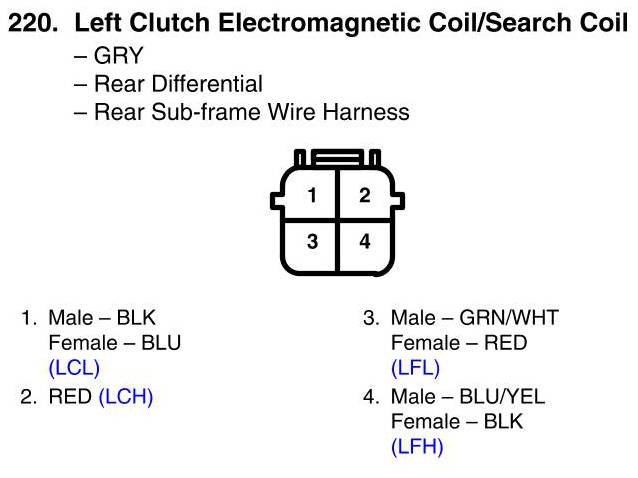

View 220 - Left Clutch Electromagnetic Coil/Search Coil Connector View
View 220 - Left Clutch Electromagnetic Coil/Search Coil Connector View
