Home >> Acura >> 2010 >> ZDX V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 214 - Front Secondary Heated Oxygen Sensor (Secondary HO2S) (Bank 2, Sensor 2) Connector View

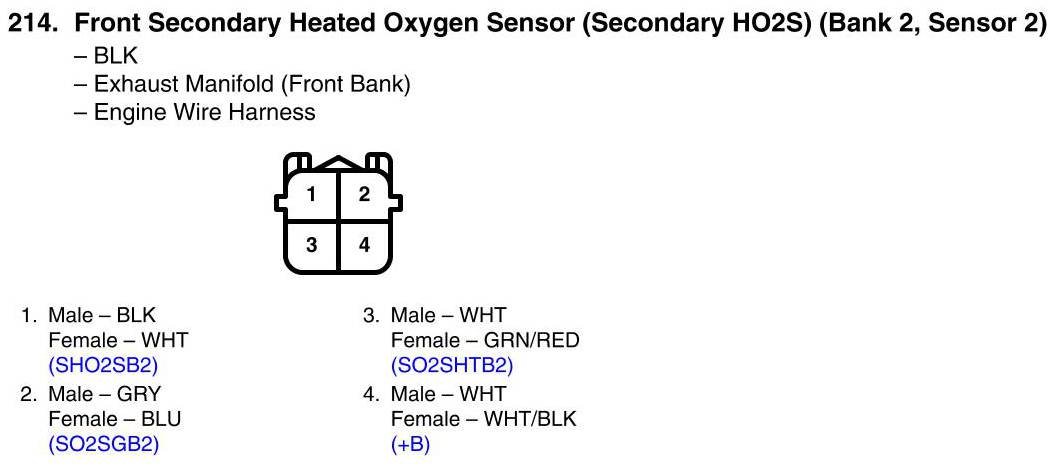

View 214 - Front Secondary Heated Oxygen Sensor (Secondary HO2S) (Bank 2, Sensor 2) Connector View
