Home
>>
Acura
>>
2010
>>
ZDX V6-3.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By View Number
>>

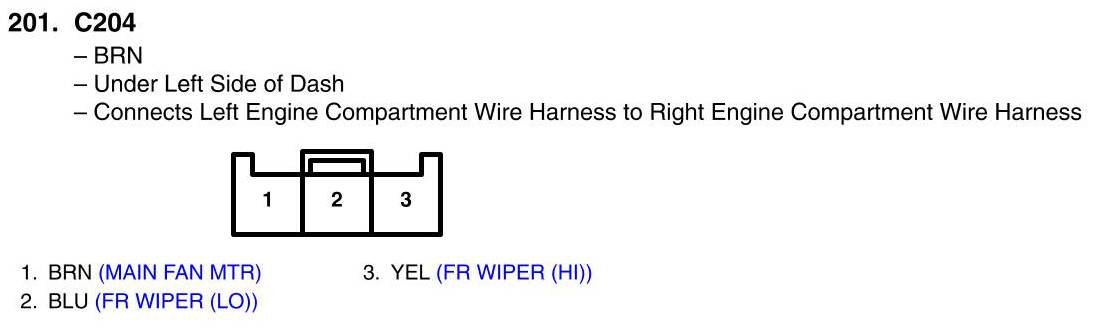

View 201 - C204 Connector View
View 201 - C204 Connector View
