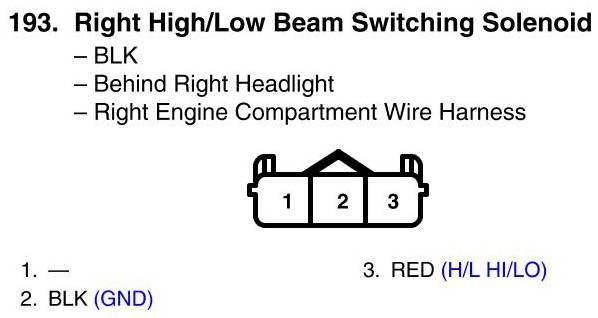

View 193 - Right High/Low Beam Switching Solenoid Connector View
View 193 - Right High/Low Beam Switching Solenoid Connector View
