Home >> Acura >> 2010 >> ZDX V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 180 - Left High/Low Beam Switching Solenoid Connector View

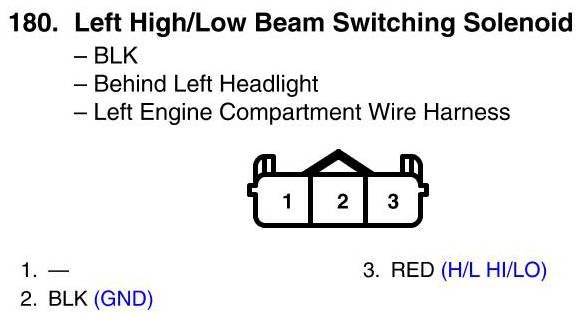

View 180 - Left High/Low Beam Switching Solenoid Connector View
