Home >> Acura >> 2010 >> ZDX V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 174 - Ignition Coil No. 6 Connector View

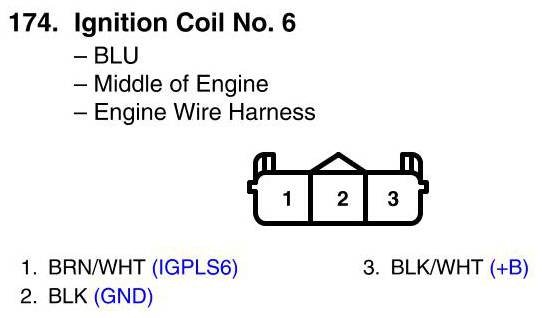

View 174 - Ignition Coil No. 6 Connector View
