Home >> Acura >> 2010 >> ZDX V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By Connector Number >> C208 Connector View (ACC)

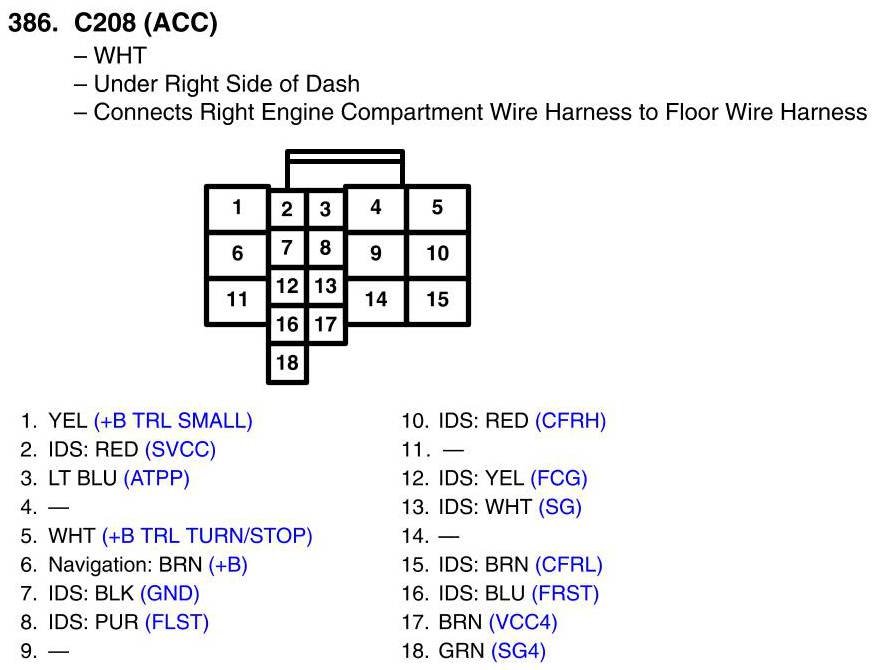

C208 Connector View (ACC)
