Brake Master Cylinder: Testing and Inspection

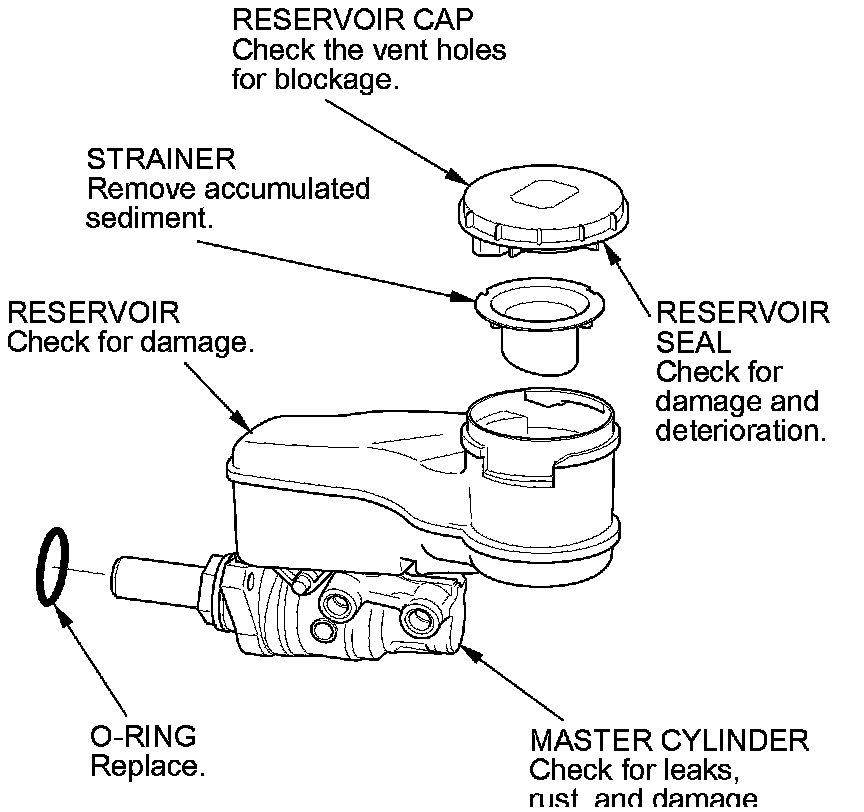

Brake Master Cylinder Inspection

1. Remove the master cylinder Service and Repair.

2. Inspect and note these items:

- Before reassembling, check that all parts are free of dirt and other foreign particles.
- Do not try to disassemble the master cylinder assembly. Replace the master cylinder assembly with a new part if necessary.
- Do not allow dirt or foreign matter to contaminate the brake fluid.





3. Install the master cylinder Service and Repair.
